CDS - Thermostatic Steam Trap

2-Piece Steam Trap with Vertical Inlet and Outlet

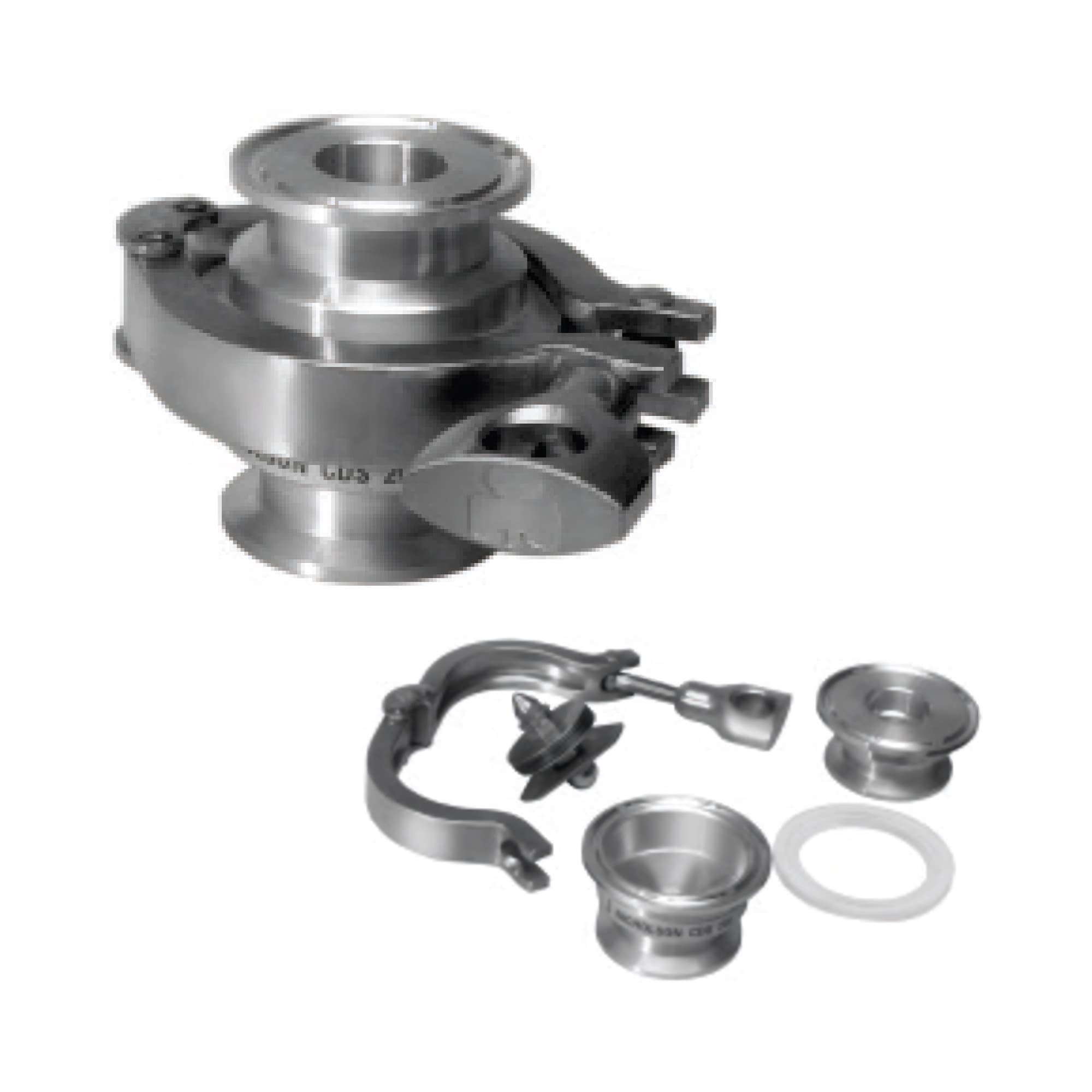

These Thermostatic steam traps help optimize CIP and SIP operations by purging condensate, non-condensibles and air from the lines. As condensate collects, the steam trap actuator will open and discharge the condensate. The CDS model is designed to be self draining for vertical installations. The CDS offer three capacities to fit your requirement and due to the 2 piece design, parts can be replaced.

Downloads

Request Info

Technical Features

2 piece barstock body – 316L stainless steel
Bellows, Hammer plate and Valve – 316L stainless steel
End Connections – ½” to 1.5” Tri-clamp
Self-draining design – no hold up
Self-centering conical valve
Ra internal finish – <20 µ-in (available with electropolish finish)
Ra external finish – <32 µ-in
5 to 100 psi (0.34 to 6.9 bar)
338°F (170°C) maximum operating temperature
Easy disassembly for sterilization or repair
For CIP, SIP and WFI/Fermenter sterilization applications
2 year warranty
-B Bellows option provides 3°F subcool for sensitive applications under 45 psi
SLR orifice option provides a 1/32” orifice at the apex of the valve to allow continuous discharge of condensate
Model CDS202 – low capacity
- 5/32” Orifice
- Maximum capacity – 291lbs/hour 10°F below saturation at 5psi
- Maximum capacity – 1207lbs/hour 10°F below saturation at 100psi
Model CDS203 – medium capacity
- 1/4” Orifice
- Maximum capacity – 550lbs/hour 10°F below saturation at 5psi
- Maximum capacity – 2825lbs/hour 10°F below saturation at 100psi
Model CDS204 – high capacity
- 5/16” Orifice
- Maximum capacity – 861lbs/hour 10°F below saturation at 5psi
- Maximum capacity – 3575lbs/hour 10°F below saturation at 100psi
