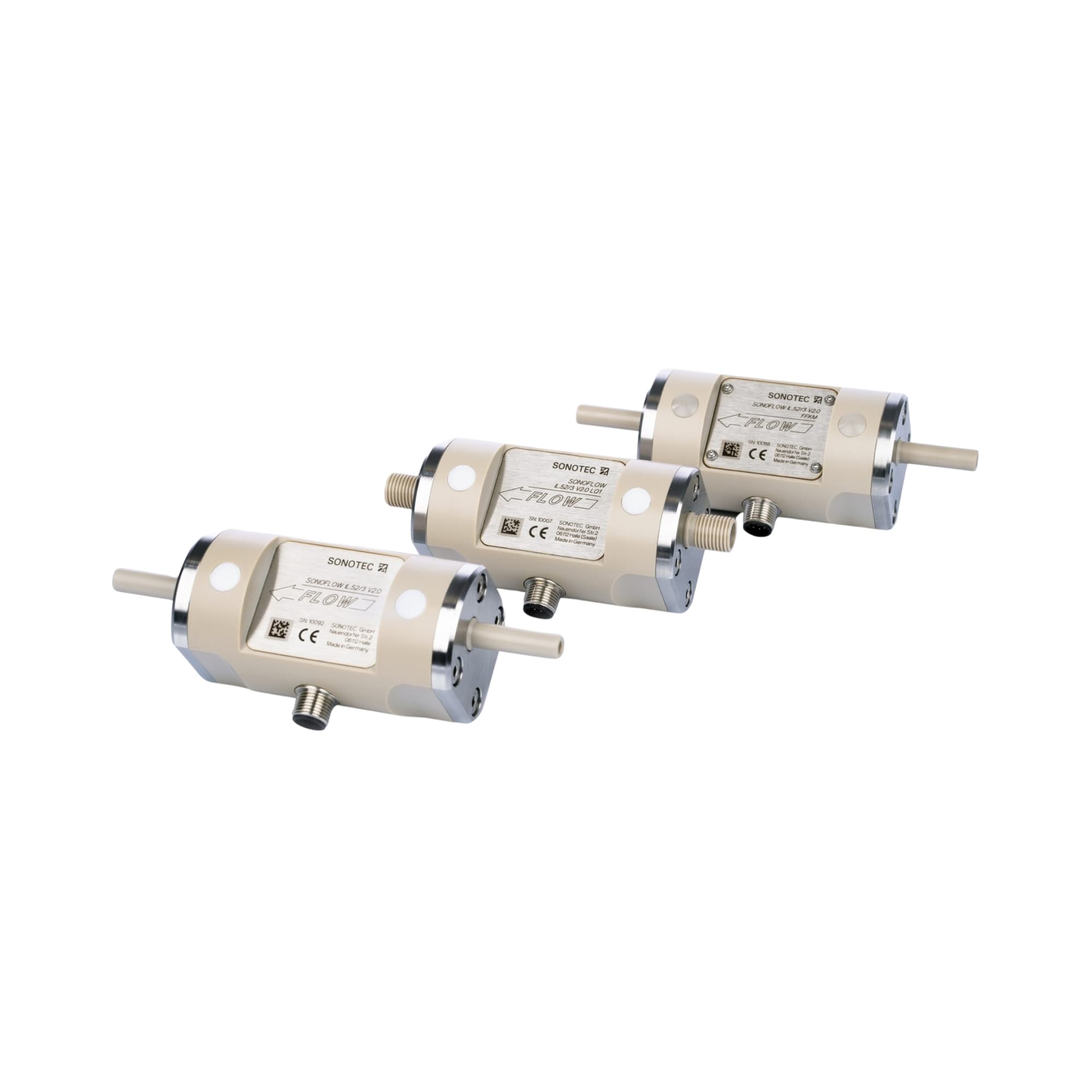

SONOTEC IL.52 Inline Flow Sensor

SONOTEC’s SONOFLOW IL.52 measures the flow rate of liquids in plastic tubes quickly and reliably using ultrasonic measurement. These highly accurate ultrasonic inline sensors are perfect when ultra-low flow rates need to be measured. The IL.52 sensor is resistant to high temperature and allow a variety of cleaning methods to reduce the risk of product holdover and cross contamination.

Downloads

Technical Notes

Request Info

Technical Features

Reads flow rates down to 0.5 mL/min
Flow measurement accuracy as low as +/- 1% and repeatability of 1%
Instantaneous response time
PEEK/Viton Contact Materials
3mm diameter measuring channel
Volume totalizing and dosing output switch for precise delivery
Electrical connection is 8 pin M12 connector
Configurable outputs include: RS485, 4-20mA, 0-20kHz, PNP-NPN-Push Pull, MODBus
Sustainable and reusable to minimize waste and costs
SIP, CIP, and ETO compatible, autoclavable
Ideal for R&D, bench top and small scale process development
No wear and tear or maintenance
