Colder Genderless Sterile Connector/ Disconnectors

Provides both a sterile connection and a sterile disconnection

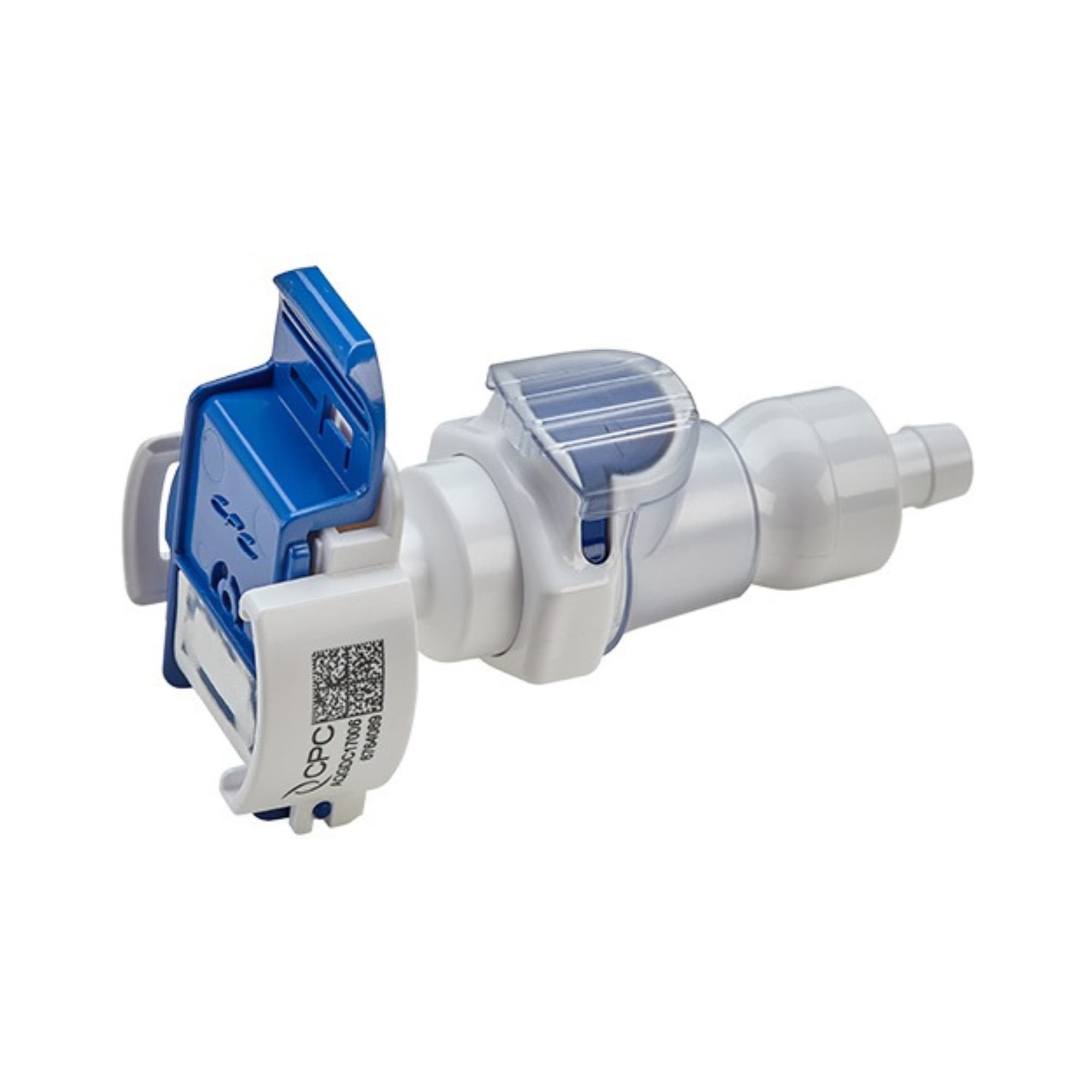

The AseptiQuik® G DC Series Connector is the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With the AseptiQuik G DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments.

The intuitive Flip – Click – Pull design of the AseptiQuik G DC connector enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple two-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path.

Downloads

Technical Features

The connector’s robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.

  • Material: Polycarbonate, USP Class VI, ADCF
  • Terminations: 1/2”, 1/4”, 3/8” hose barb (6.4mm, 9.5mm, 12.7mm)
  • Sterilization: Gamma up to 50kGy
  • Operating Pressure: Up to 60 psi (4.1bar), Up to 75 psi (5.1 bar) for 48 hours
  • Operating Temperature: 34°F to 104°F (1°C to 40°C)
