ASEPTIQUIK^® S SERIES CONNECTORS

• Sterile connection for your 1/4” small flow applications
• Material: Polycarbonate, silicone
• Terminations: 1/8″; 1/4″; 3/8″ ID hose barb (3.2mm, 6.4mm and 9.5mm); 1/4″; 3/4″ sanitary & MPC insert
• Sterilization: Gamma up to 50kGy, Autoclavable up to 266°F (130°C) for 60 minutes (white tab version only)
• Operating Pressure: Up to 60 psi (4.1bar)
• Operating Temperature: 39°F to 104°F (4°C to 40°C)
• CPC Aseptiquik S Data Sheet

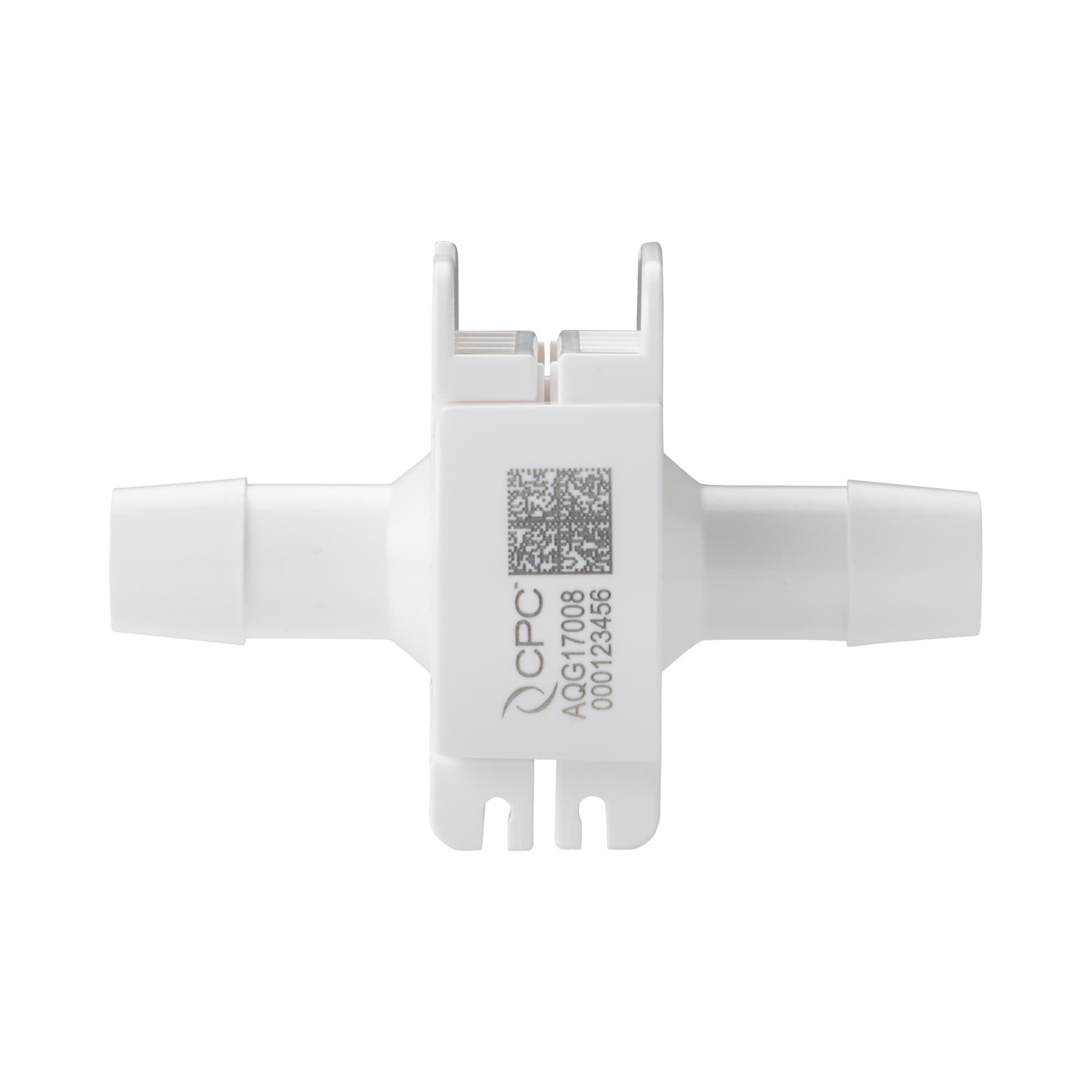

 ASEPTIQUIK^® G SERIES CONNECTORS

• Sterile connection for your 1/2″ flow applications
• Material: Polyphenylsulfone, polycarbonate and silicone
• Terminations: 1/4″; 3/8″; 1/2″; 3/4″ ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) & 3/4″; 1 1/2″ sanitary
• Sterilization: Gamma up to 50kGy, Autoclavable up to 266°F (130°C) for 60 minutes (white tab version only)
• Operating Pressure: Up to 60 psi (4.1bar), Up to 75 psi (5.1 bar) for 48 hours
• Operating Temperature: 39°F to 104°F (4°C to 40°C)
• CPC Aseptiquik G Data Sheet

ASEPTIQUIK^® L SERIES CONNECTORS

• Sterile connection for your 1″ flow applications
• Material: Polycarbonate, silicone
• Terminations: 3/4″; 1″ ID hose barb (19.0 mm; 25.4 mm); 1-1/2″ sanitary
• Sterilization: Gamma up to 50kGy, Autoclavable up to 266°F (130°C) for 60 minutes (white tab version only)
• Operating Pressure: Up to 60 psi (4.1bar), Up to 75 psi (5.1 bar) for 48 hours
• Operating Temperature: 39°F to 104°F (4°C to 40°C)
• CPC Aseptiquik L Data Sheet
