Media Bottles and Carboys

Single-use bottles and carboy assemblies

Sentinel Process Systems offers a range of customized single-use Media Bottles and Carboys, ideal for product sampling and storage needs in the production of drug and vaccines. Offered in a variety of shapes, sizes, cap options and materials, our bottle assemblies offer complete and reliable fluid transfer and storage.

Request Info

Technical Features

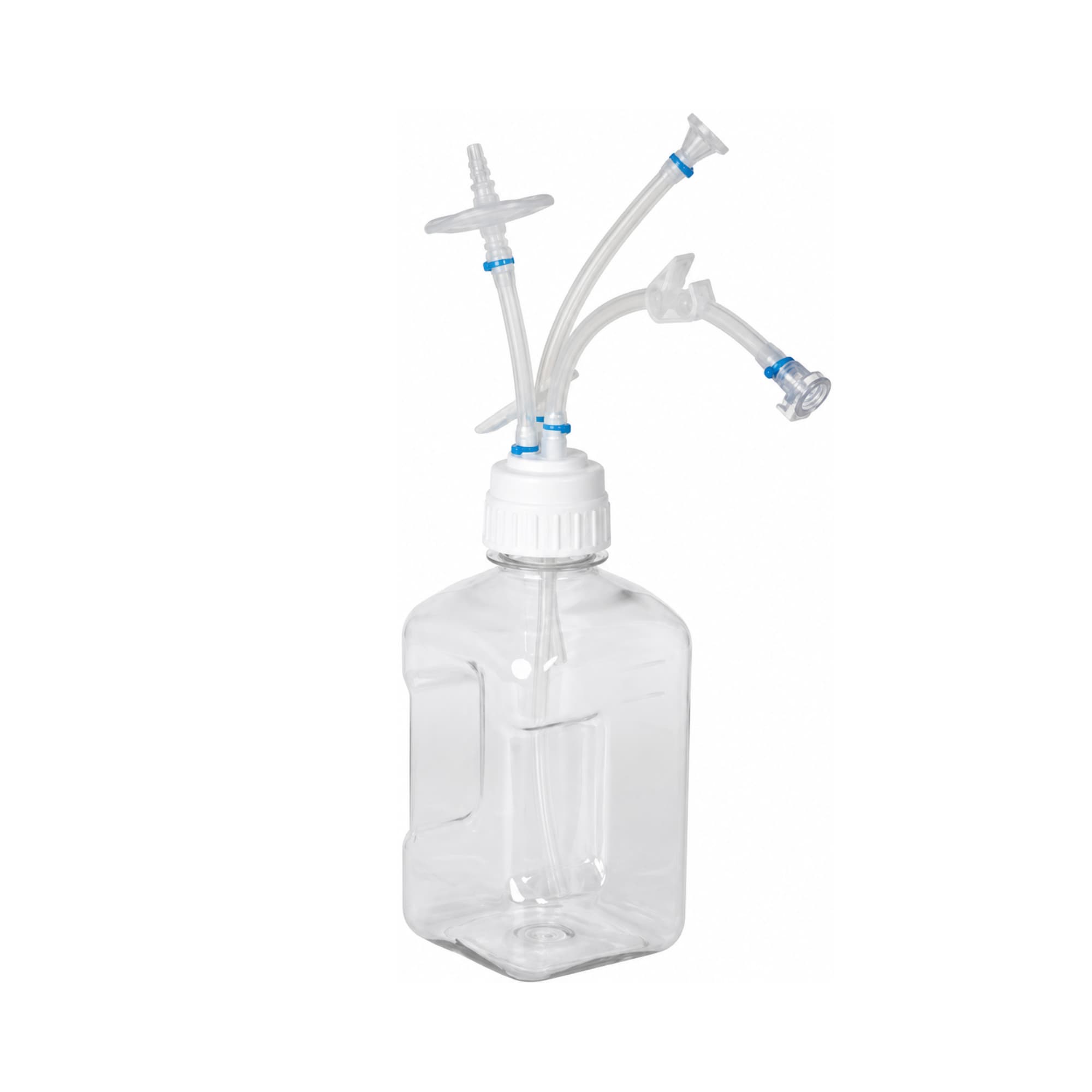

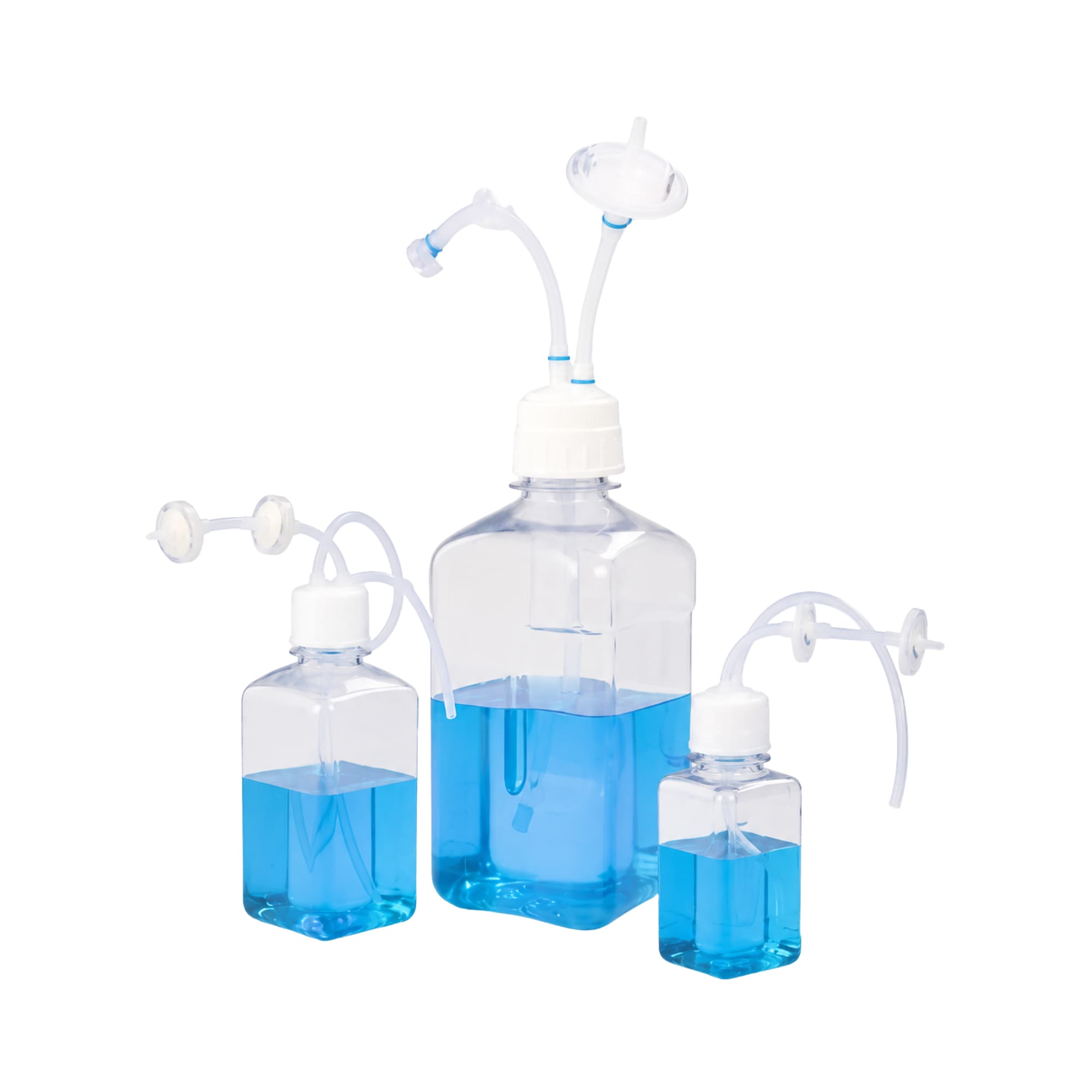

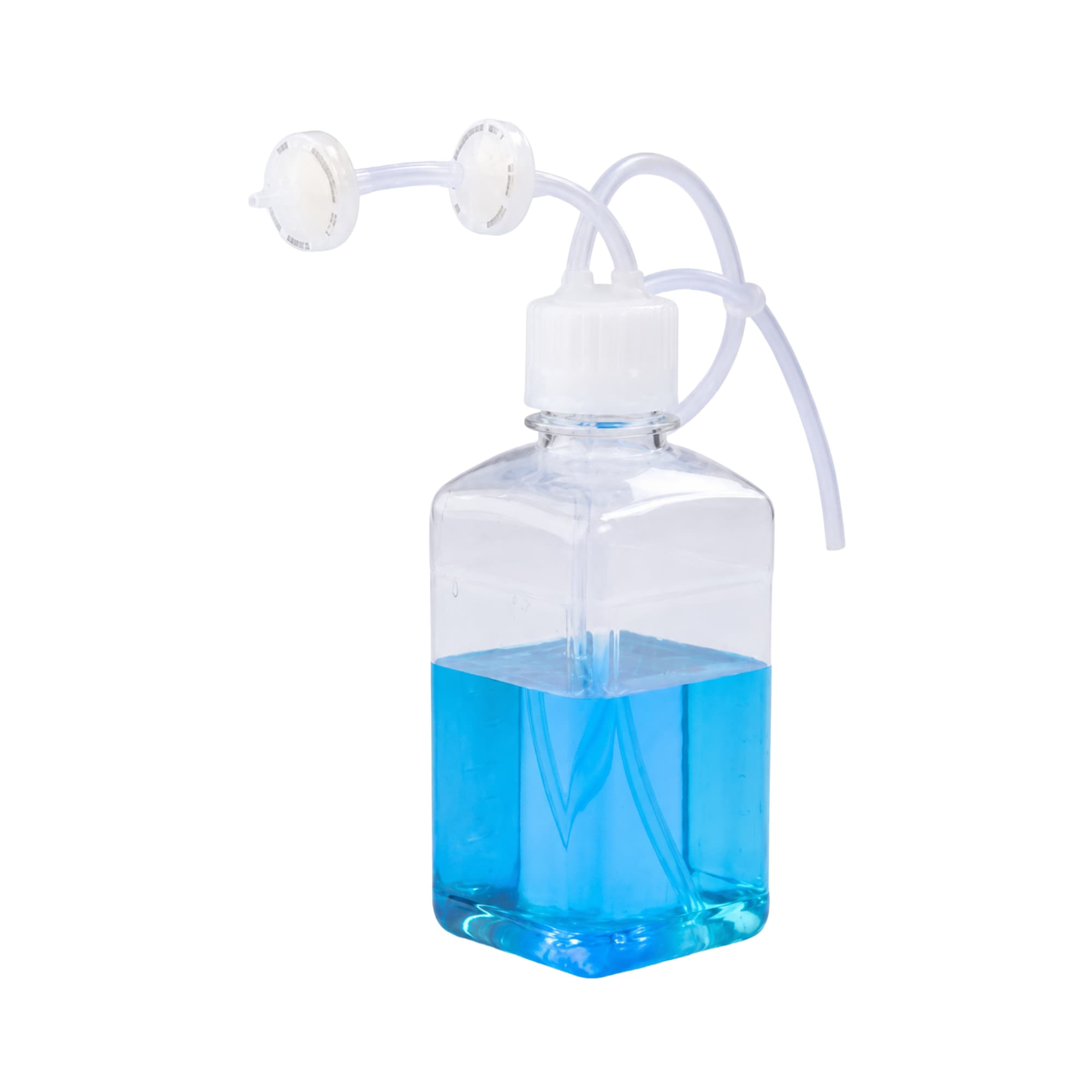

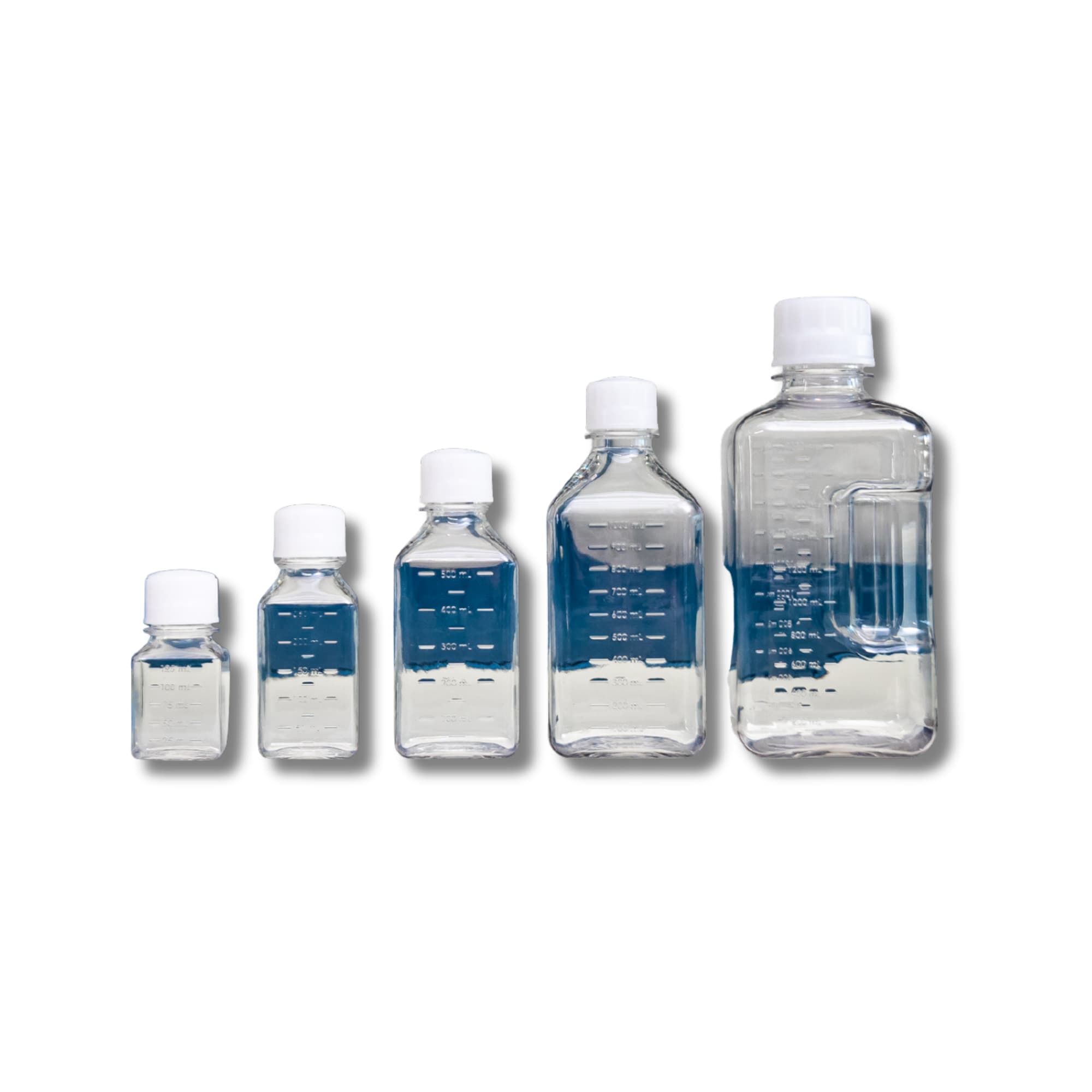

MEDIA BOTTLES

Sentinel Process offers Single-Use Bottle Assemblies available in Polyethylene Terephthalate Glycol-modified (PETG) for complete and reliable fluid transfer and storage. Perfect for single-use applications and to phase out costly stainless steel apparatuses that are expensive to clean and validate.

Key Features
  • Bottle Size: 60ml, 125ml, 250ml, 500ml, 1L, 2L
  • Bottle Material: Copolyester PETG, crystal clear for optical monitoring
  • Tube material: TPE or Silicone
  • Tube size: Dip tube line – 1/8” ID x ¼” OD; Vent line – ¼” ID to 7/16” OD
  • Vent Filters: 25mm .2µm hydrophobic PVDF membrane provides superior gamma stability and ensures a higher degree of sterility assurance
  • Cap: White HDPE
  • One-piece molded stopper to ensure barrier seal integrity
  • Secure and stable clamps
  • Connectors: AseptiQuik or polypropylene plug supplied on outlet of siphon tube
  • Forked siphon tubing for maximum drainability
  • Assembled and packaged in an ISO Class 7 Clean Room
  • Gamma stable: 25 –40kGy
  • Custom assemblies available upon request
Typical Applications
  • Aseptic Sampling
  • Media/Buffers Storage
  • Sterile Filling
  • Vaccine Production
  • Process R&D
Regulatory
  • Lot and batch traceable, ADIF, DMF listed, ISO 10993, FDA 21 CFR, USP Class VI, UPS 661, Reach Compliant, USP 85, ANSI/AAMI ST72

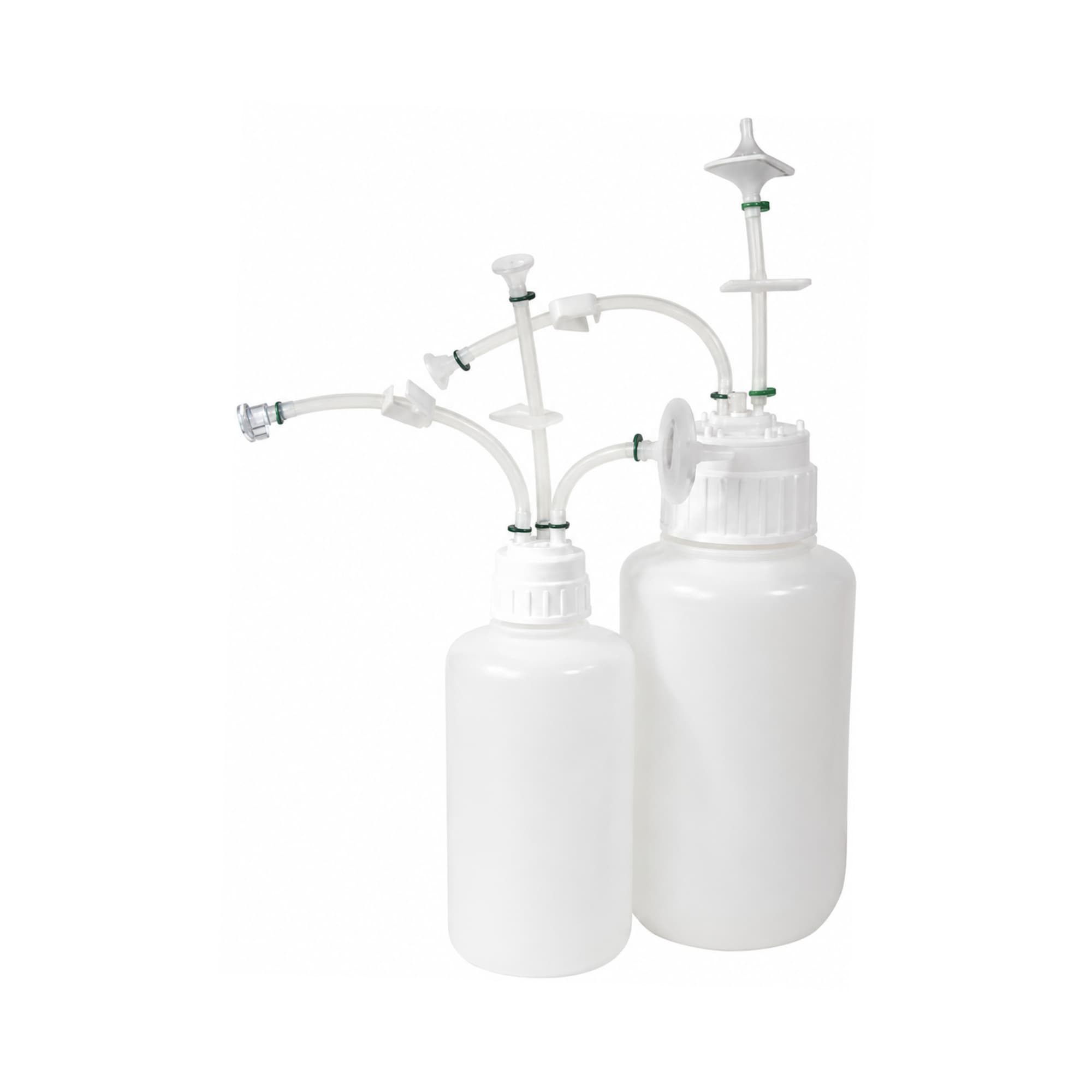

CARBOYS

Carboys are designed for storing large volumes of media. These are designed and manufactured to serve as an exceptionally versatile container that can maximize storage efficiency and ease of usage.  Plastic carboys, though reliable and durable can scratch easily and be tough to clean.

Key Features
  • Bottle Size: 2.5L, 5L, 10L, 20L, 40L (dependent on material chosen)
  • Bottle Material choices:
    • Polypropylene (PP)
    • Polyethylene Terephthalate Glycol-Modified (PETG)
    • Polycarbonate (PC)
    • High Density Polyethylene (HDPE)
    • Low Density Polyethylene (LDPE)
  • Various cap sizes available
  • Spigots available
  • Clear or translucent depending on material chosen
  • BPA-free
  • Made from a USP Class VI material
  • FDA Grade for optimum protection of your assets
