Single-Use Pinch Valves

Sentinel Process offers several product designs of sanitary pinch valves with unique advantages over traditional “throw-away” polymer components for shut-off single-use applications in bioprocessing. All tubing brands and compounds can be operated indefinitely from batch-to-batch with no physical break to the process tubing thus preventing any possibility of contamination.  This allows the use of customer provided tubing without the need to weld tubing.

Request Info
  • Exigo with white Handle 3 fade
  • Exigo with white Handle element closed
  • Exigo with SS Handle fade
  • Exigo with white Handle 2 fade
  • Exigo with white Handle 3 fade
  • Exigo with white Handle element closed
  • Exigo with SS Handle fade
  • Exigo with white Handle 2 fade

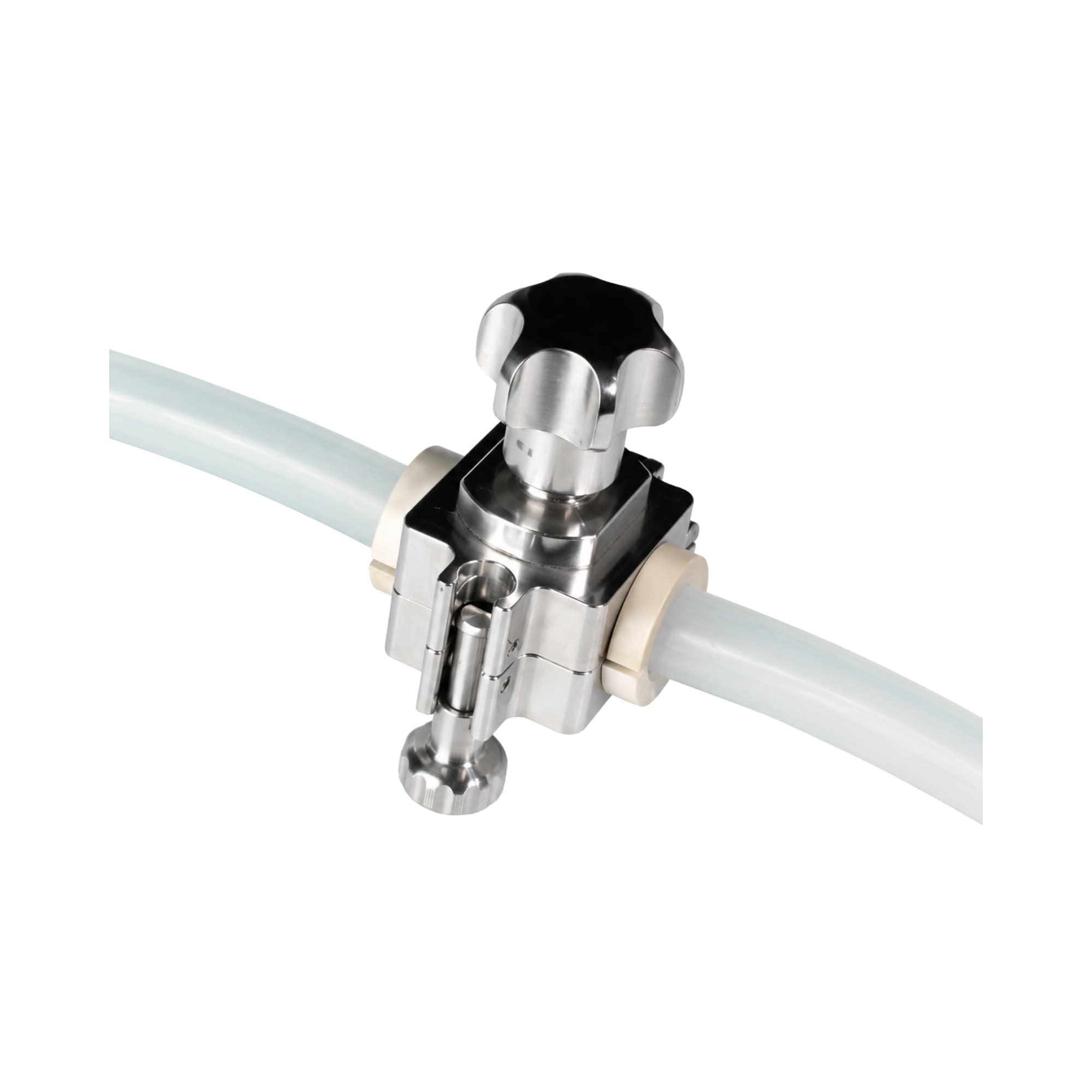

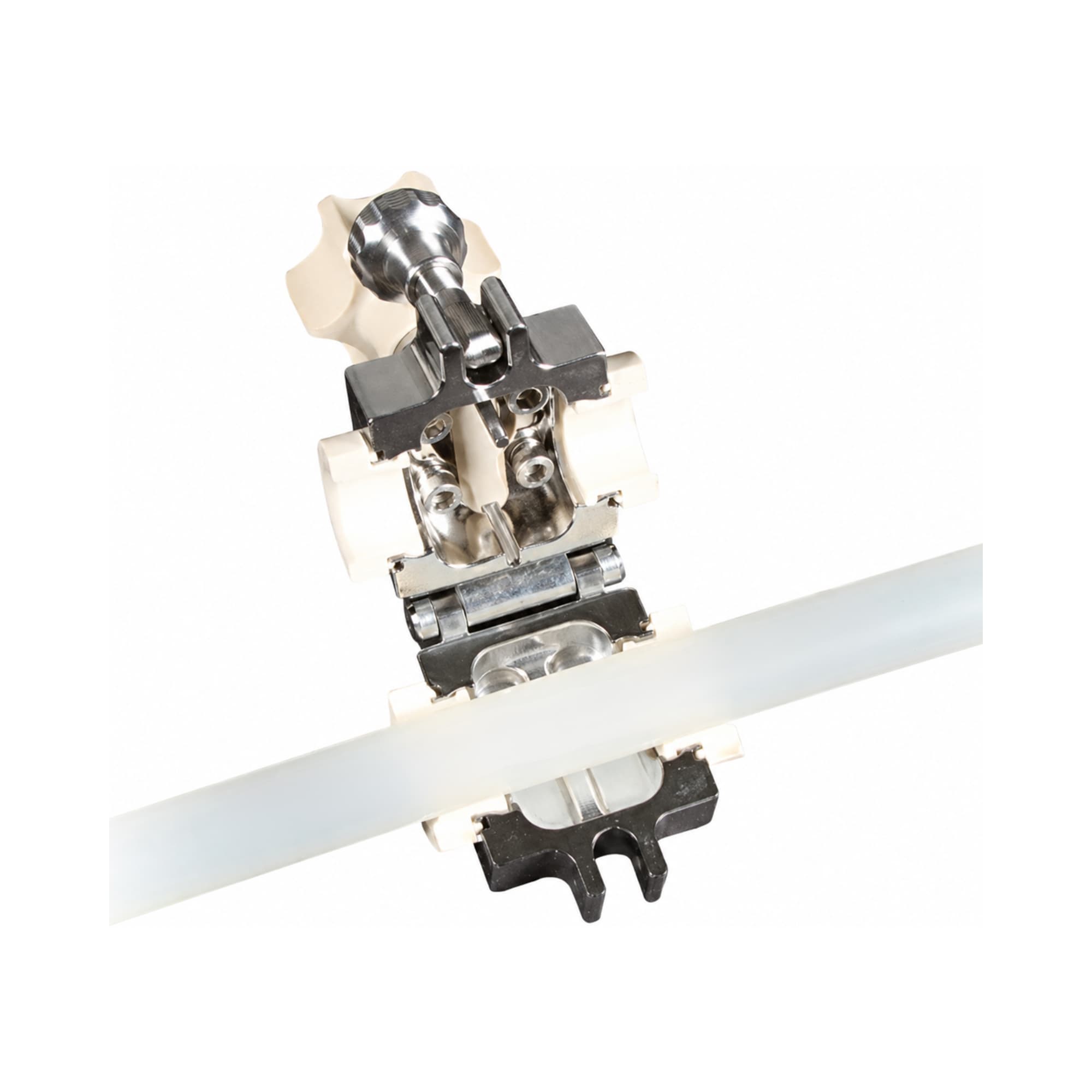

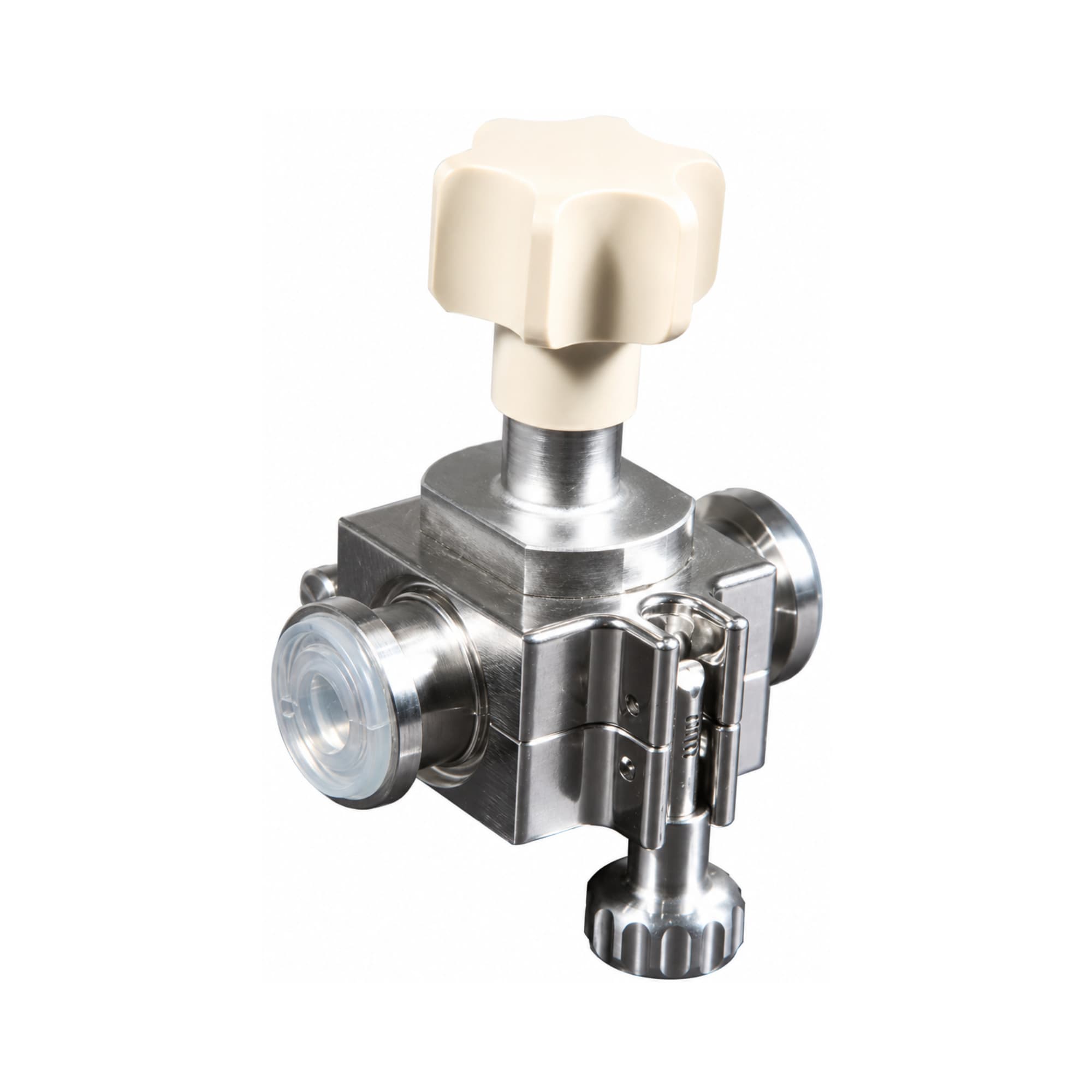

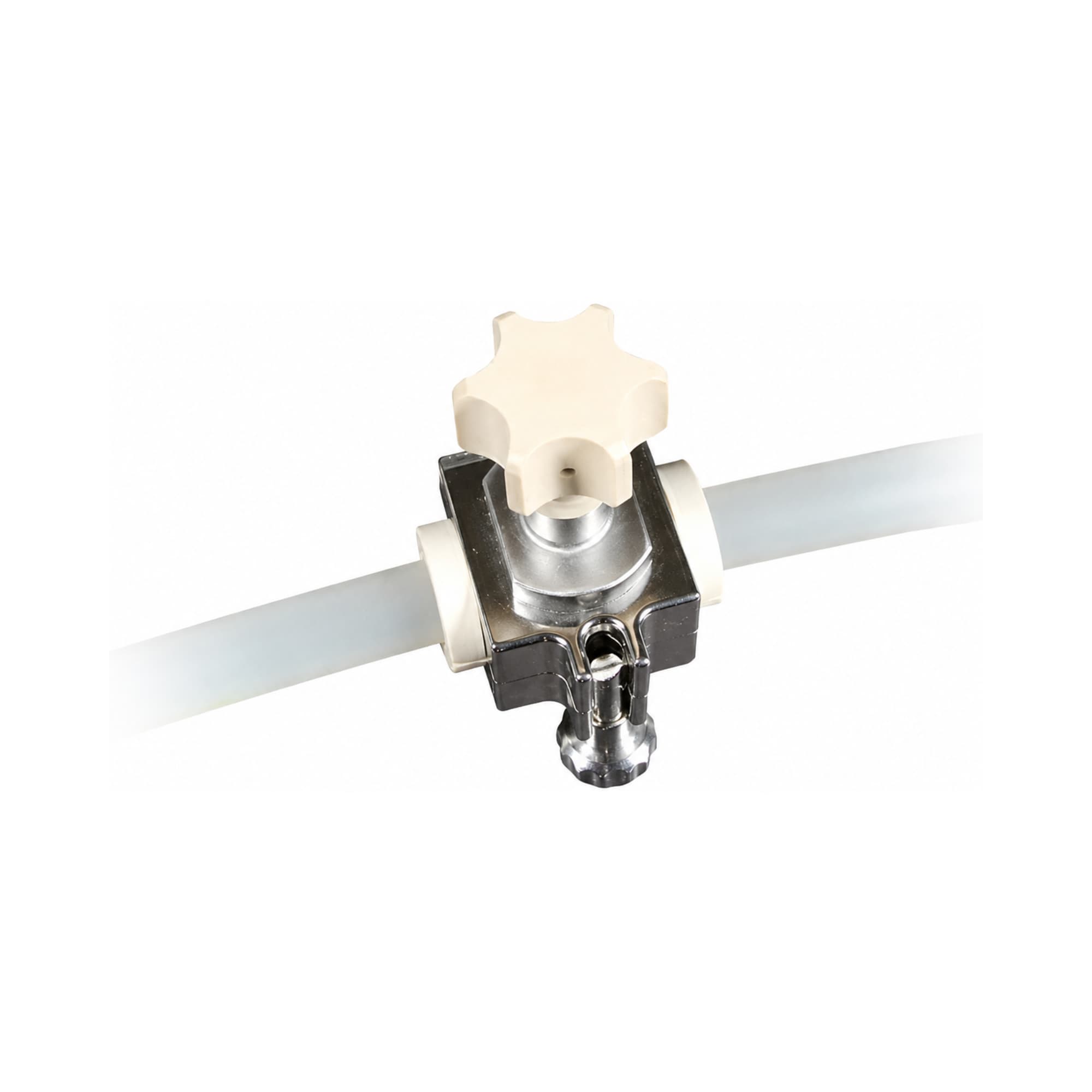

Excalibur Stainless Steel Single-Use Pinch Valves

Excalibur’s Stainless Steel Single-Use Pinch Valves offer a more robust, longer life alternate to using low cost plastic pinch clamps or valves.  These Pinch Valves are designed to handle the unique requirements in Process Development and Production.

Key Features
  • 316L Stainless Steel constructions (except hinge bolts, anvil guide pins and mounting screws are made with 18-8 Stainless Steel)
  • All materials are USP Class VI certified
  • High-temperature durable construction
  • Pinch Valve design allows no product exposure or breaks in tubing
  • Suitable for any silicone tubing brand or compound
  • Fully autoclavable
  • Can accommodate existing standard silicone tubing (1/8” to 1”)
  • ETE21600600M IMAGE
  • ETE116001S0M IMAGE
  • ESU2HM00100M IMAGE
  • ESTE216AAU08A011S0U IMAGE
  • ETE21600600M IMAGE
  • ETE116001S0M IMAGE
  • ESU2HM00100M IMAGE
  • ESTE216AAU08A011S0U IMAGE

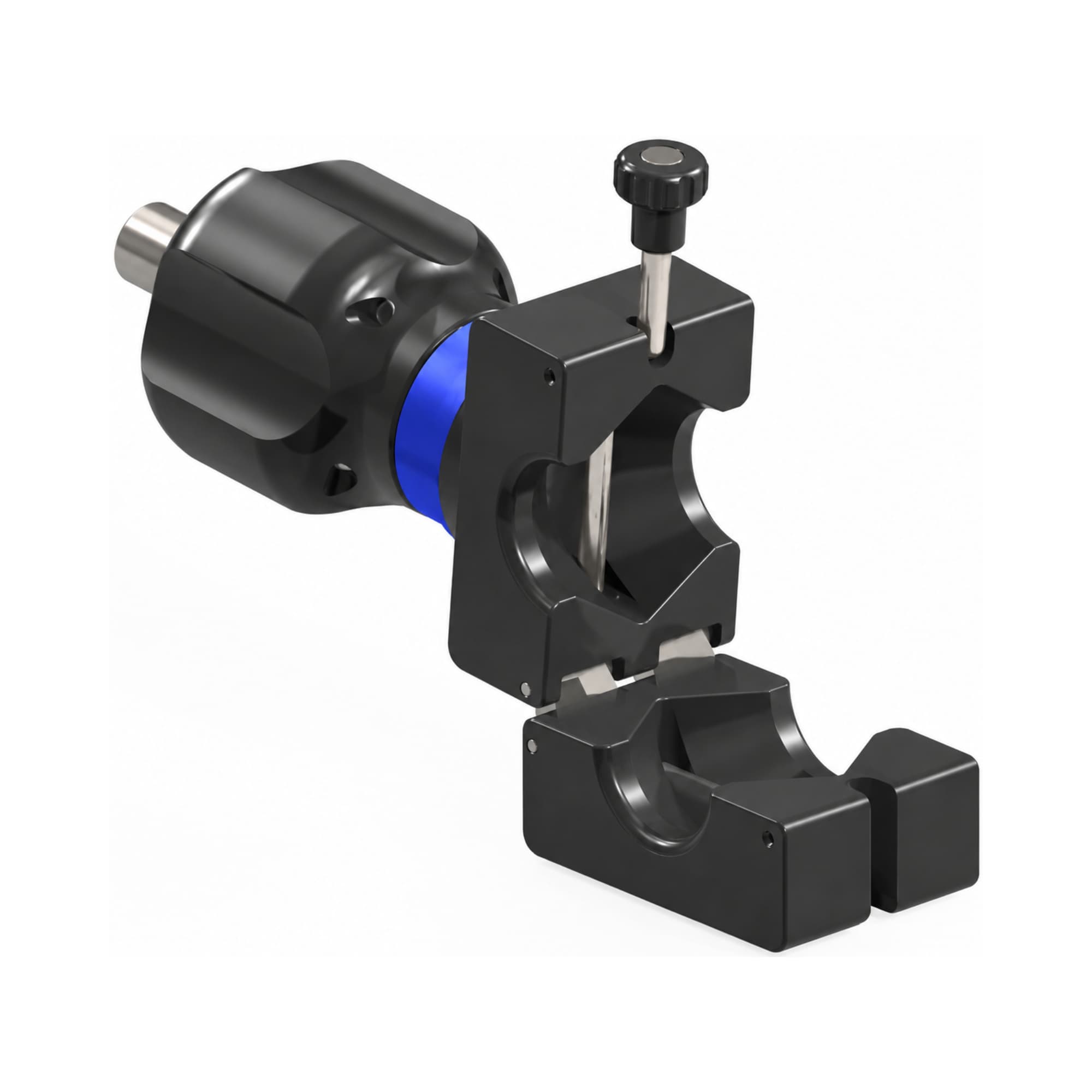

Fluid Line Technology Plastic Single-Use Pinch Valves

Fluid Line Technologies line of Single-Use Pinch Valves offers an economical alternative for use in Process Development and Production.

Downloads
Key Features
  • All materials are USP Class VI certified
  • High-temperature durable construction
  • Pinch Valve design allows no product exposure or breaks in tubing
  • Suitable for any tubing brand or compound
  • Sealed assembly and fully autoclavable

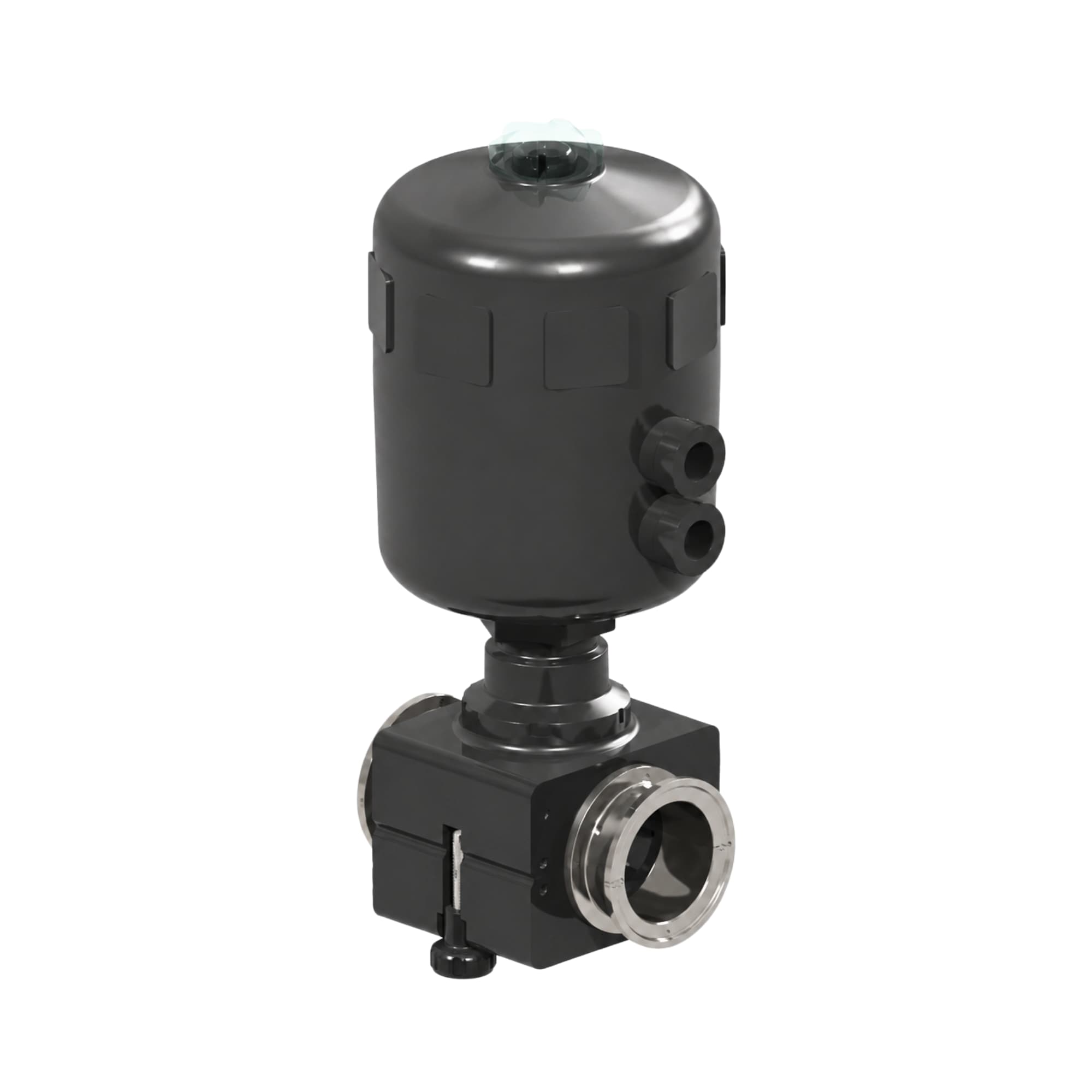

  • Manual or air actuated control
  • Self-aligning & non-rotating stem with open indication
  • Handles available in several colors
  • Custom sizes are available
Fluid Line 2-Way Pinch Valve is available in three different designs:
  1. Standard Pinch Valve – for use with existing standard silicone tubing (1/8” to 1”)
  2. ID Element Pinch Valves – features a replaceable Silicone Element with sanitary clamp ends to match the dimensions of standard silicone tubing (1/8” to 1”)

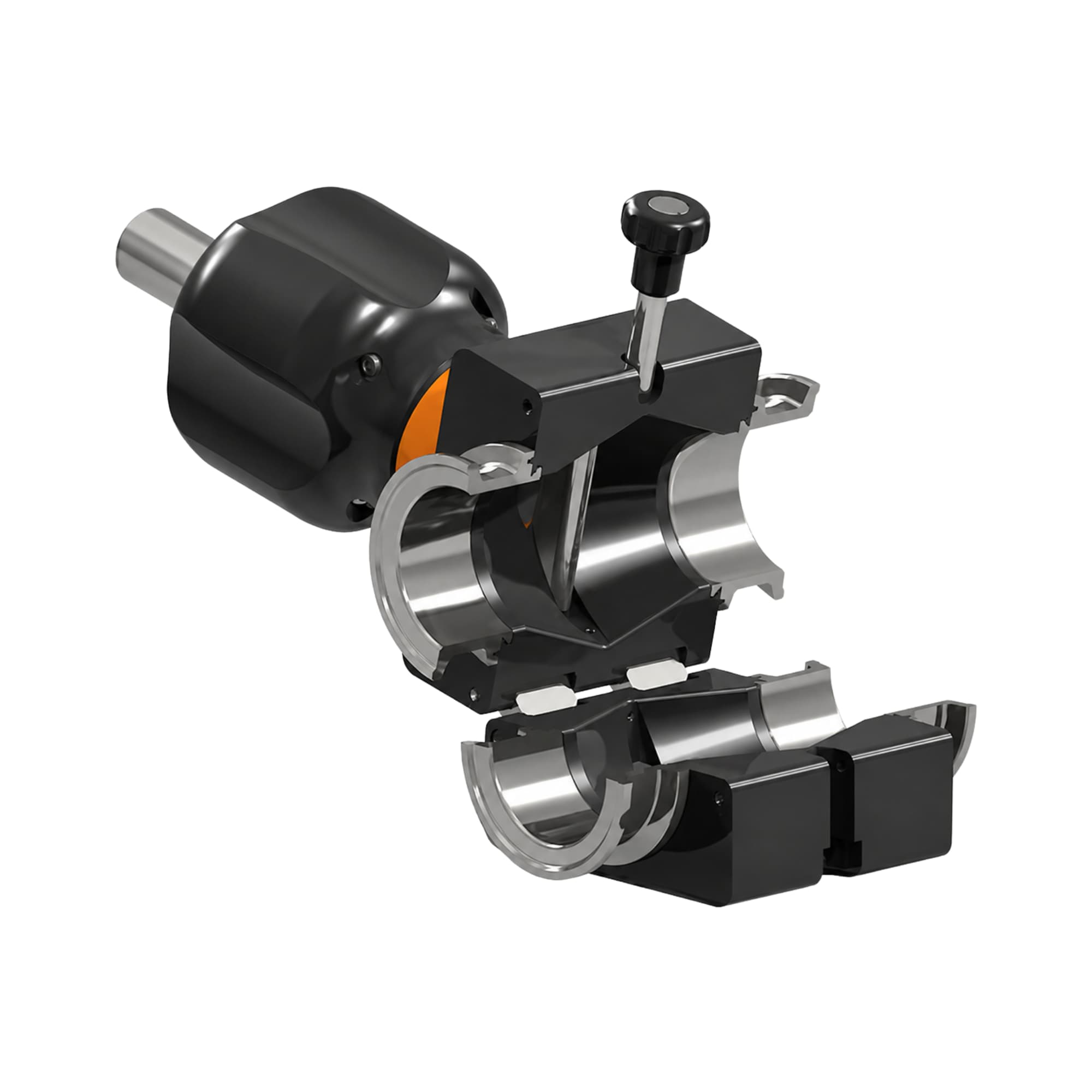

  3. OD Element Pinch Valves – features a replaceable Silicone Element with sanitary clamp ends to match the dimensional standards of stainless steel tube applications (1/4” to 1”)

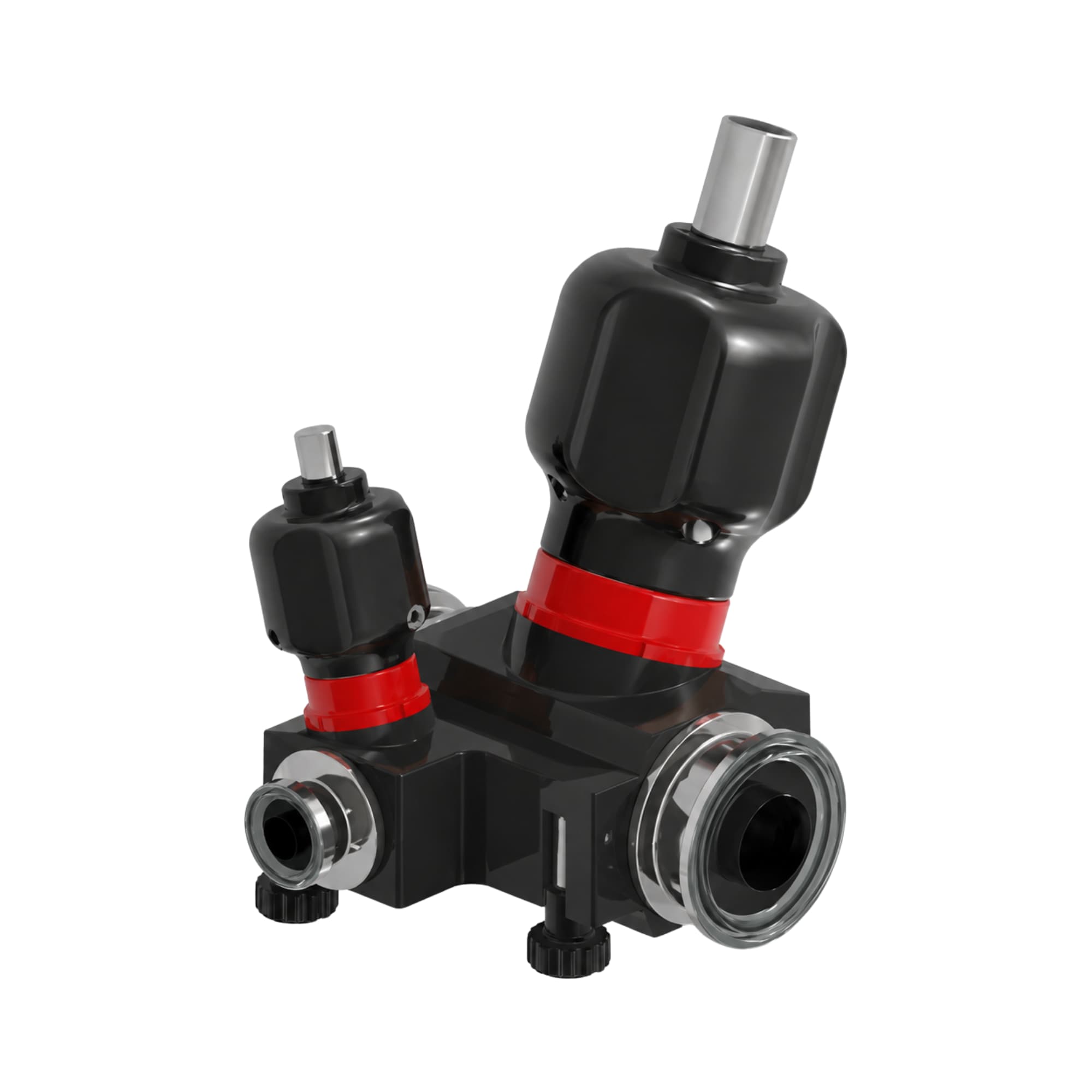

Fluid Line 3-Way and 4-Way Pinch Valve are available in the ID and OD Element designs.
