Tri-Clamp Adapters

Sentinel Process Systems, Inc. offers a large selection of stainless steel Tri-Clamp Adapters. Available in 316L or AL-6XN stainless steel or Hastelloy and manufactured in accordance with ASME-BPE, ASTM A967 and 3A standards. These Adapters are designed to provide a strong, leak-free connection and are used extensively in the dairy, food and beverage, and pharmaceutical industry.

  • Each Adapter is cleaned using a multiple step process to assure clean surface, areas inside and out with repeatability every time.
  • Available with Mechanical or Electro-Polish Finish
  • Every Adapter is passivated according to ASME BPE and ASTM A967 standards. We provide full traceability for each of our products by supplying all necessary production process data.
  • Each Adapter is permanently laser marked to show the heat number/code traceable to material test report for each product contact surface component, material type, manufacturer’s name, logo, & trademark, product contact surface designation for the appropriate BPE specification, and ASME BPE mark.
  • Each Adapter is capped, bagged and labeled in full compliance with the ASME BPE standard.
  • A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. See “Sealing Technologies” product section for more information on gaskets.
Request Info
  • clamp_x_mnpt
  • adapter_kmnpt_32
  • adapter_kmnpt

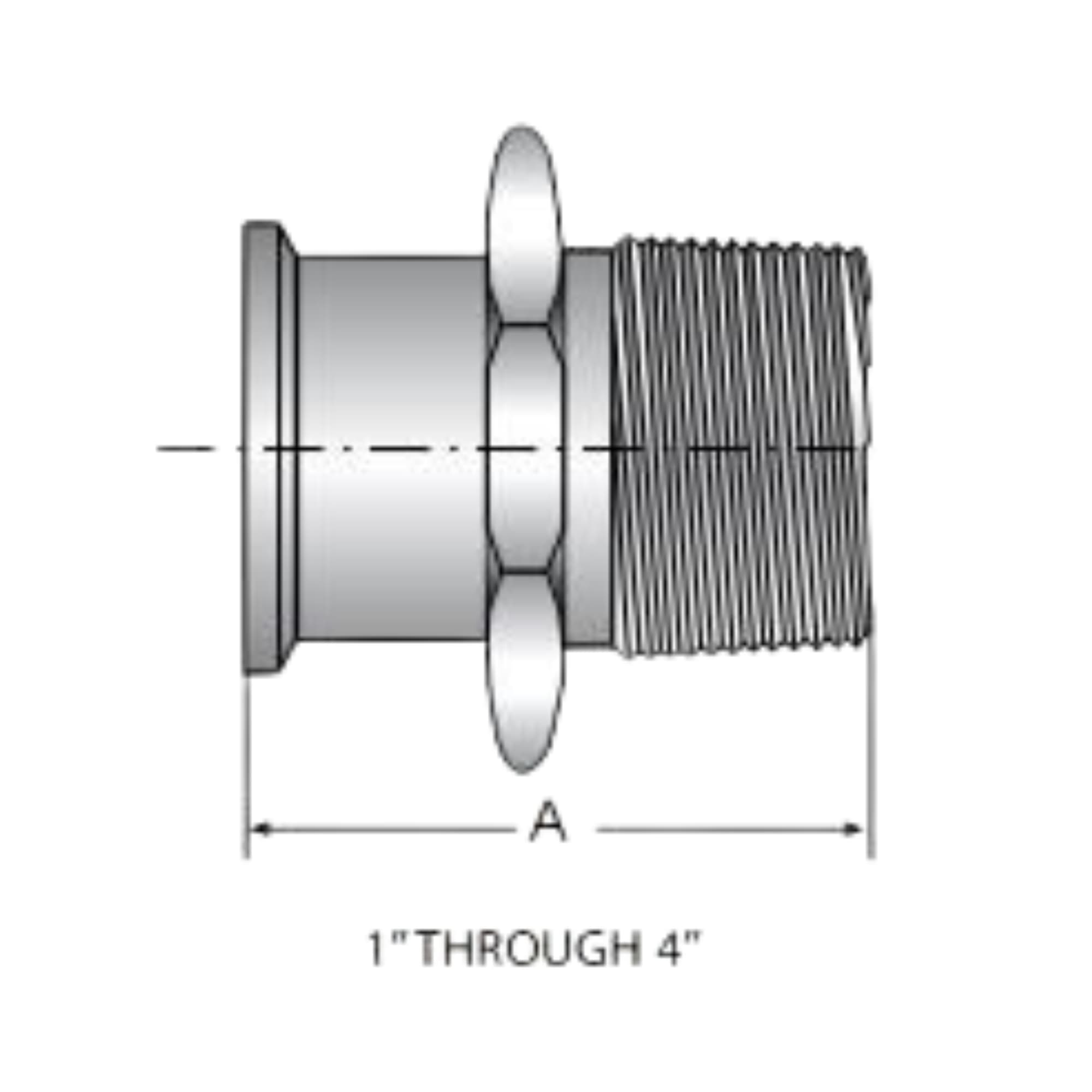

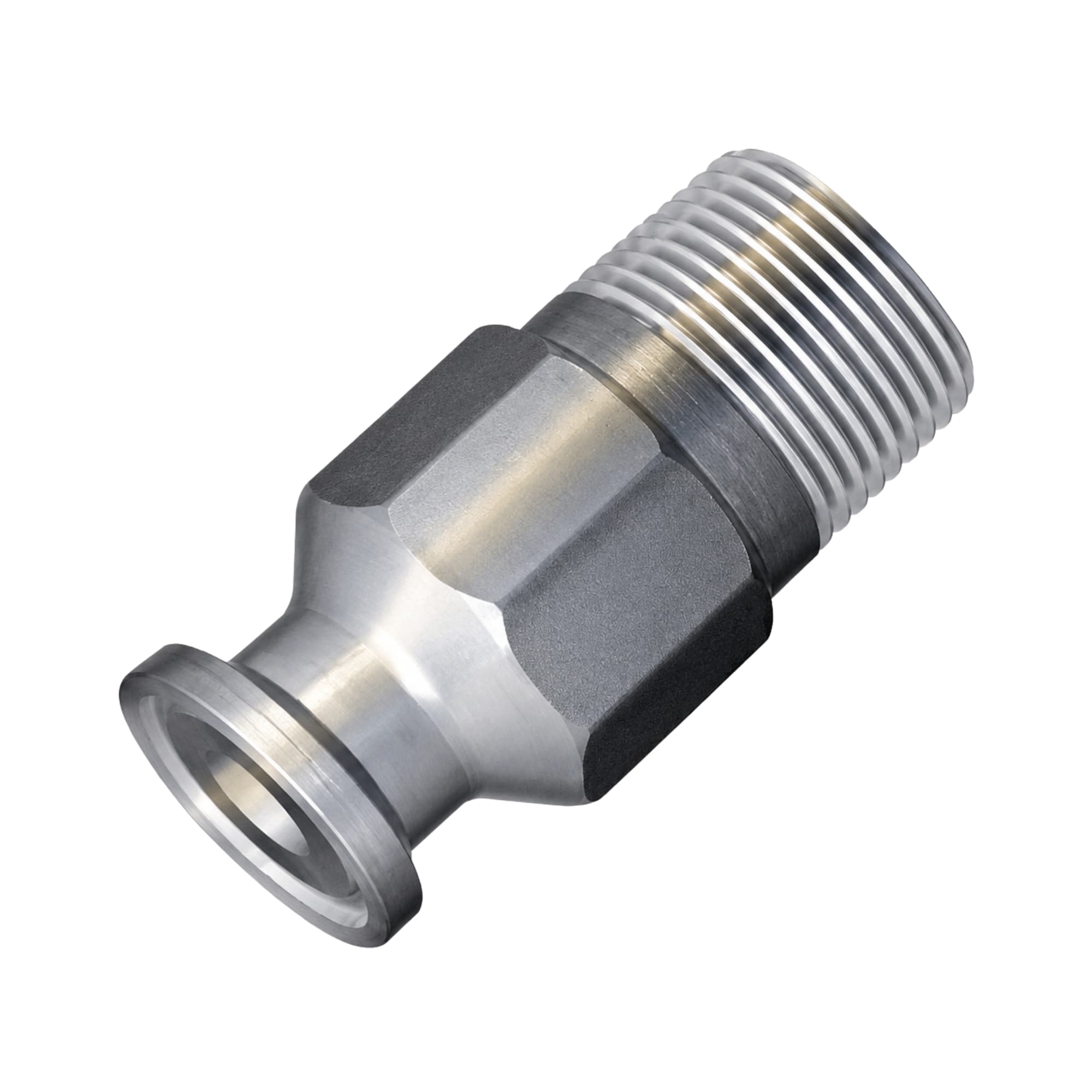

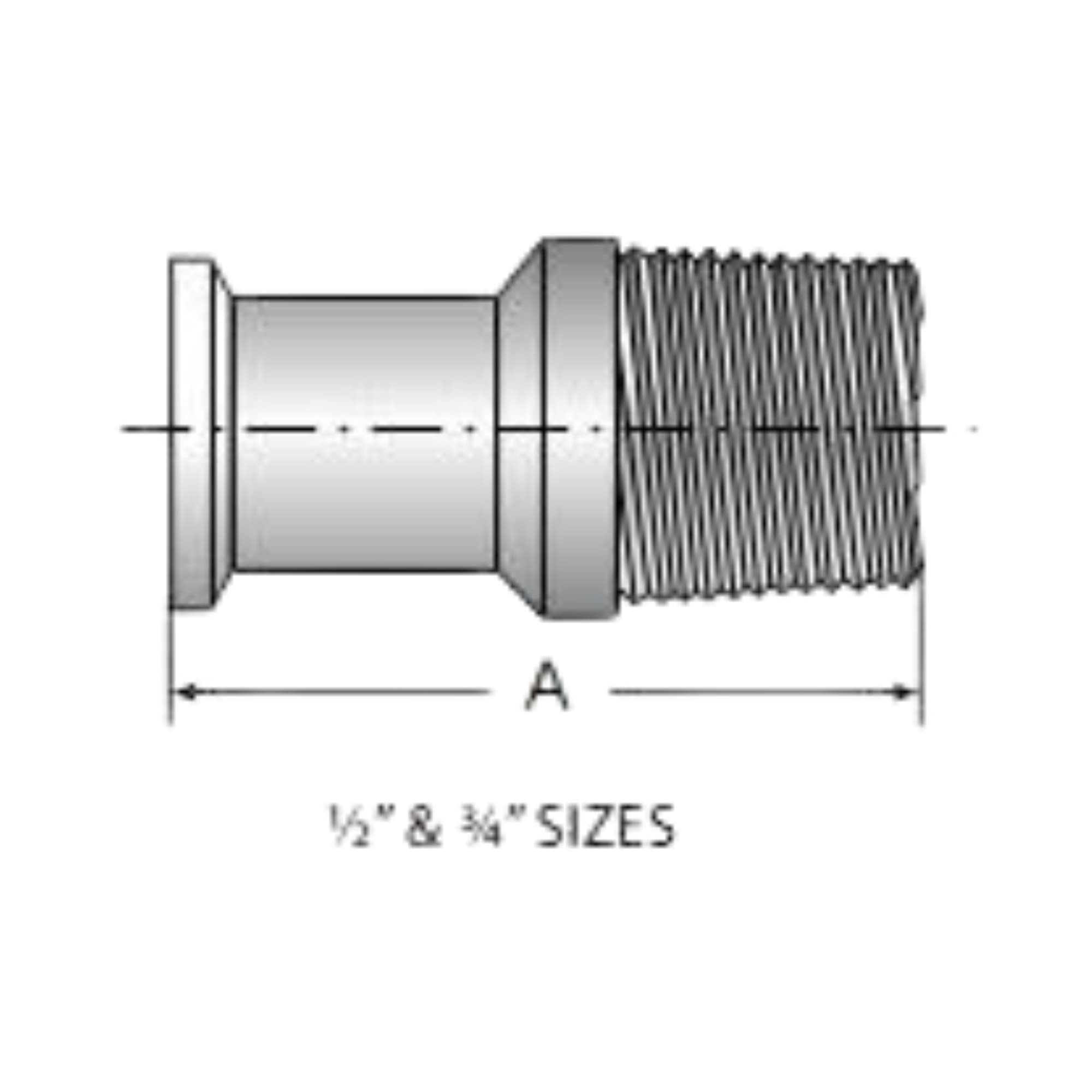

Tri-Clamp x Male NPT Adapter

Tri-clamp x Male NPT Adapters are available with a variety of clamp and thread sizes that allow the Adapters to be used in a variety of sanitary fitting functions.

  • The Adapters feature clamp sizes ranging from ½ inch to 4 inches.
  • The Male NPT threaded connection varies in size from as small as 1/8 inch up to 4 inches.
  • The overall length ranges from 2 inches to 3.81 inches.
  • clamp_x_fnpt
  • adapter_kfnpt_32
  • adapter_kfnpt_32

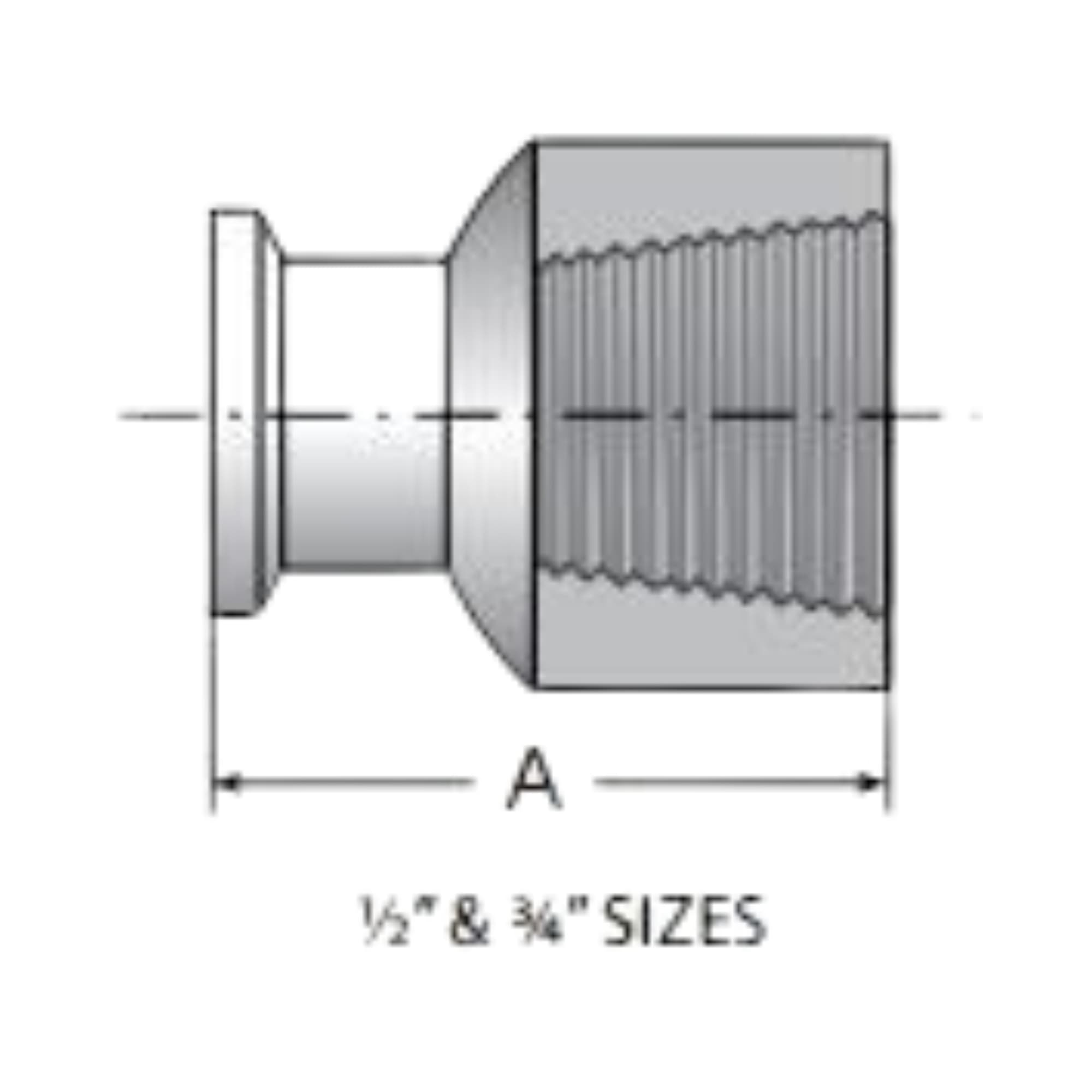

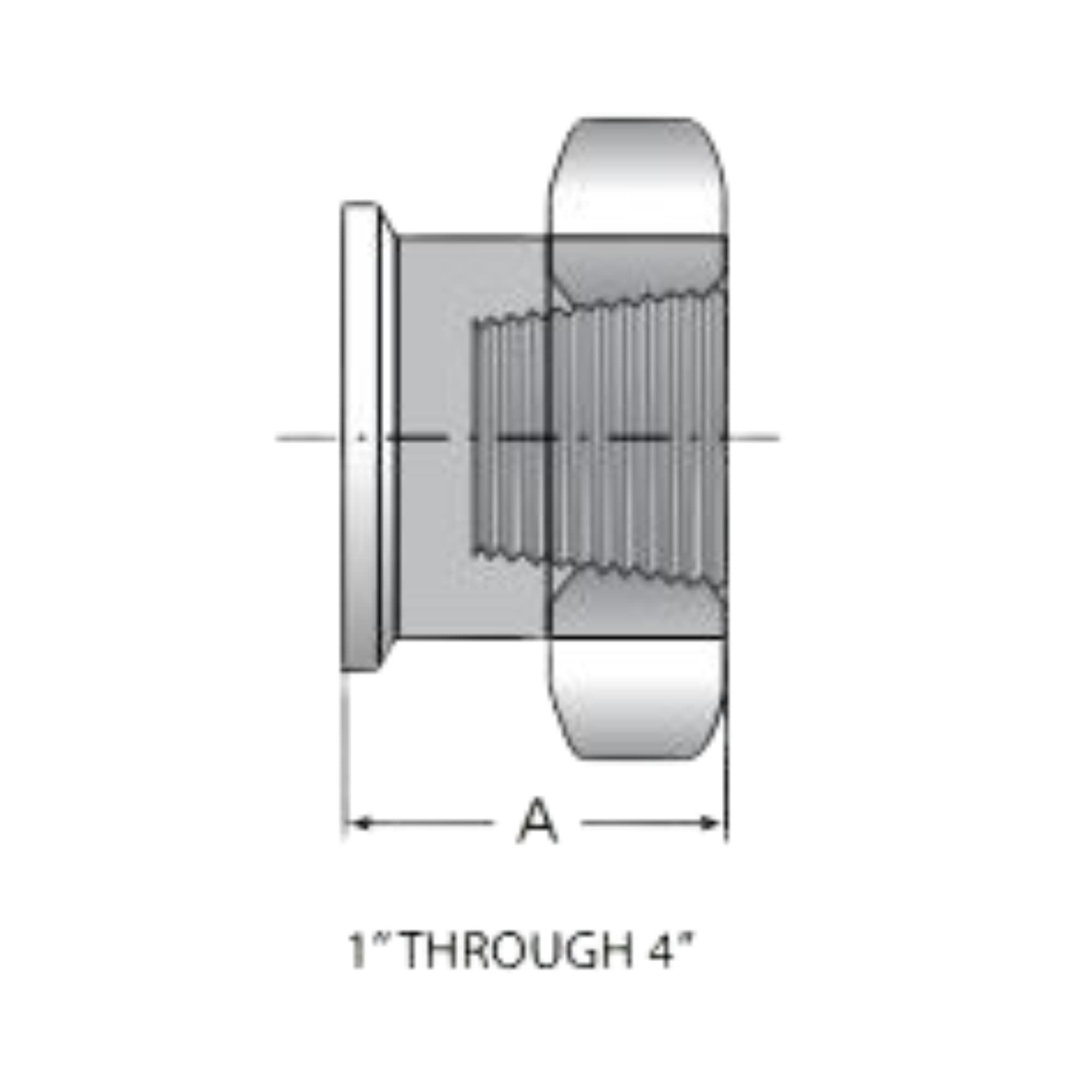

Tri-Clamp x Female NPT Adapter

Tri-Clamp x Female NPT Adapters are available with a variety of clamp and thread sizes that allow the Adapters to be used in a variety of sanitary fitting functions.

  • The Adapters feature clamp sizes ranging from ½ inch to 4 inches.
  • The Female NPT threaded connection varies in size from as small as 1/8 inch up to 4 inches.
  • The overall length ranges from 1.25 inches to 3.81 inches.
  • cusFab_hoseBarbs.01
  • cusFab_hoseBarbs.04

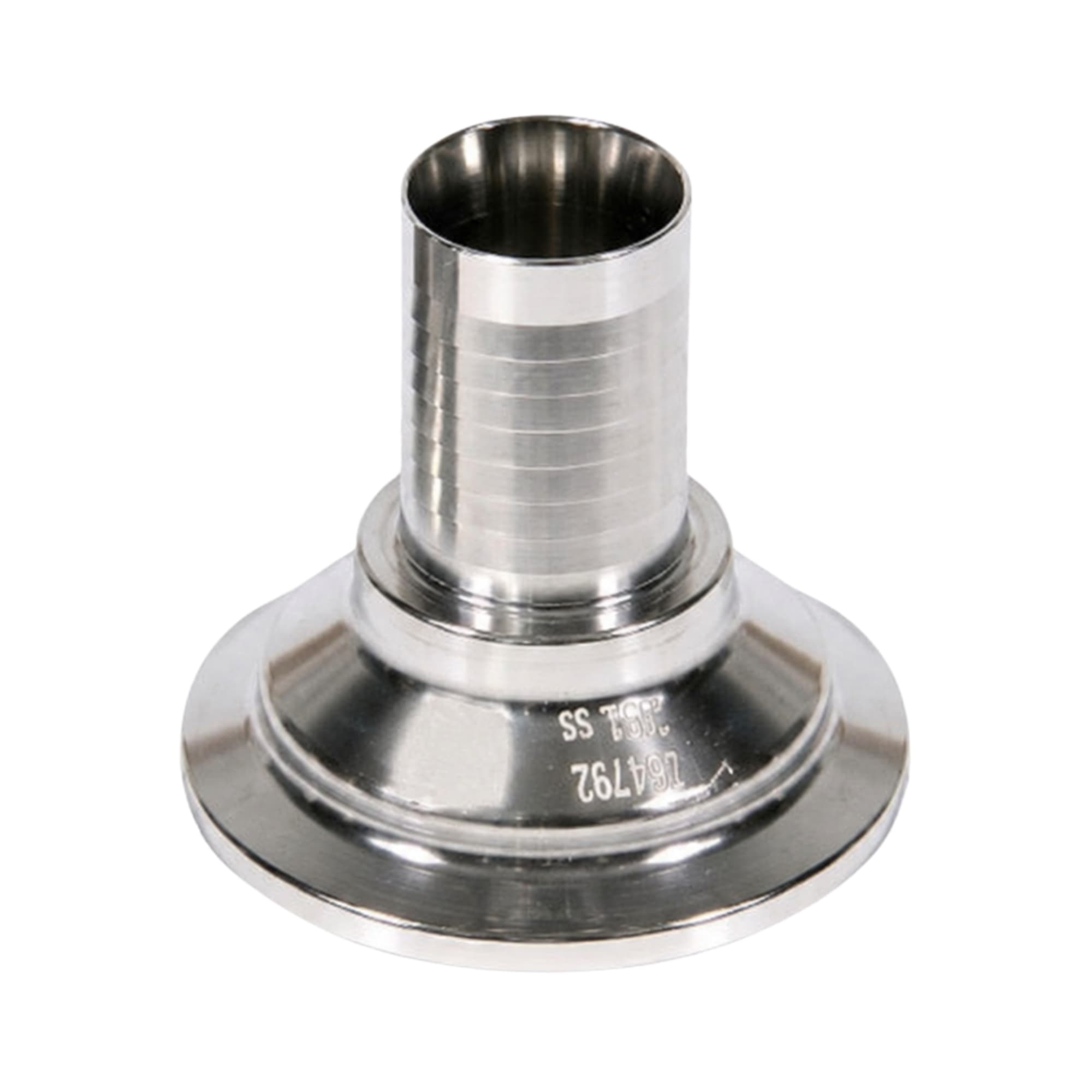

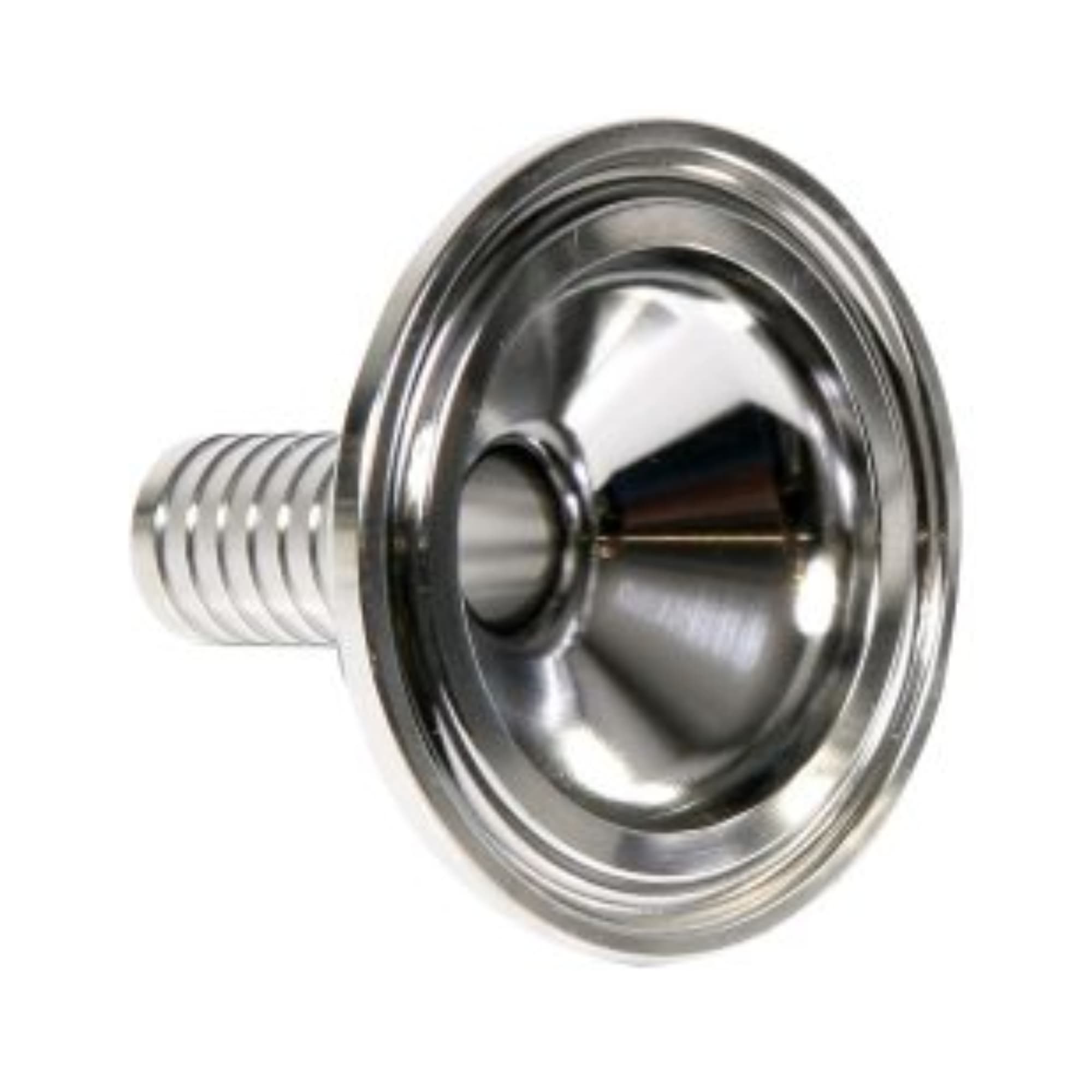

Tri-Clamp x Hose Barb Adapter

Tri-Clamp x Hose Barb Adapters are available with a variety of clamp and hose barb sizes that allows the Adapter to be used in a variety of sanitary fitting functions.   The non-permanent hose fitting allows for both ease in assembly and breakdown of sanitary line process equipment. The grooved end provides a tight seal for rubber hose connection.

  • The Adapters feature clamp sizes ranging from ½ inch to 4 inches.
  • The Hose Barb varies in size from as small as 1/8 inch up to 4 inches.
  • The overall length ranges from 1.24 inches to 3.44 inches.
