SONOTEC CO.55 Non-Invasive Flow Sensor

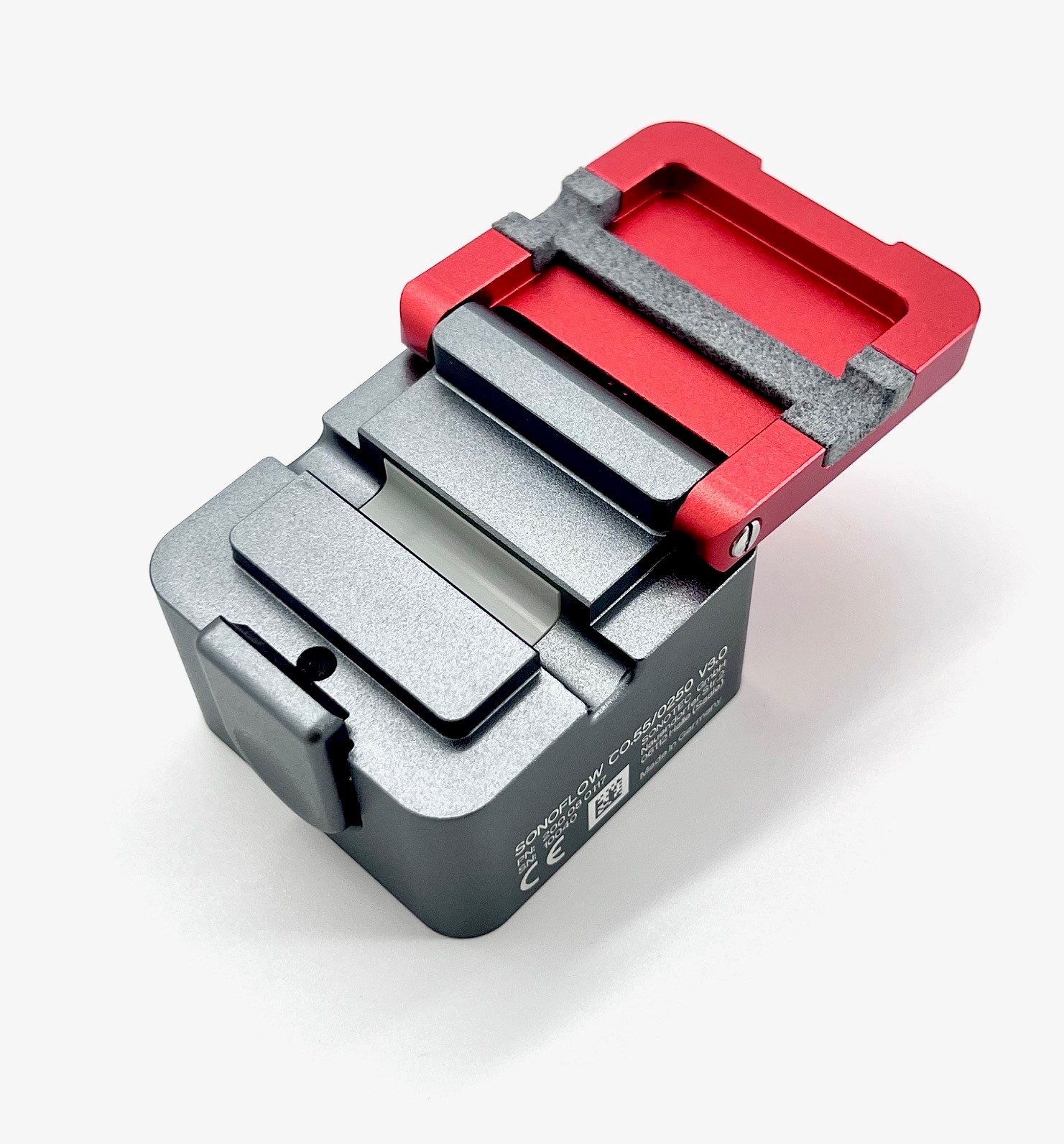

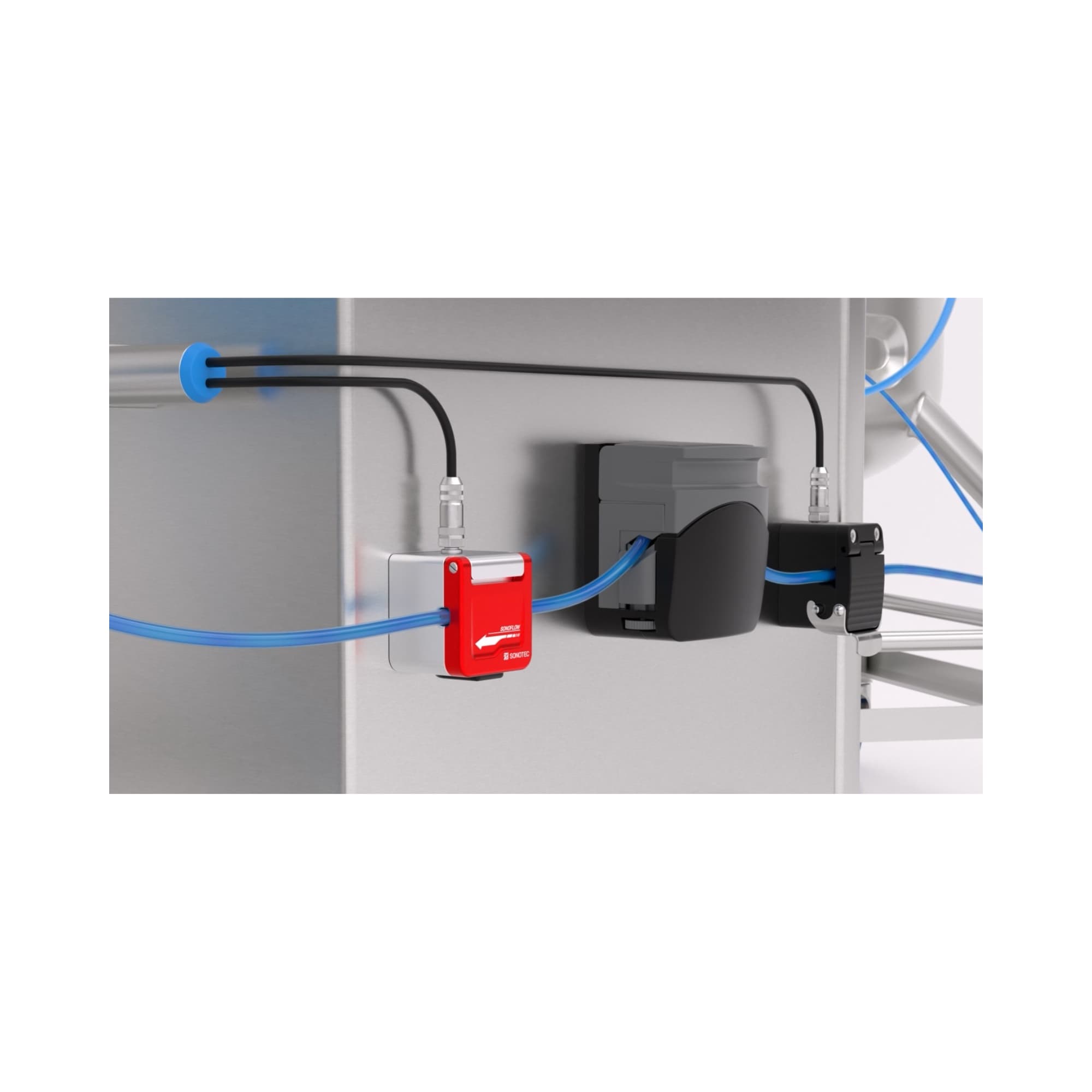

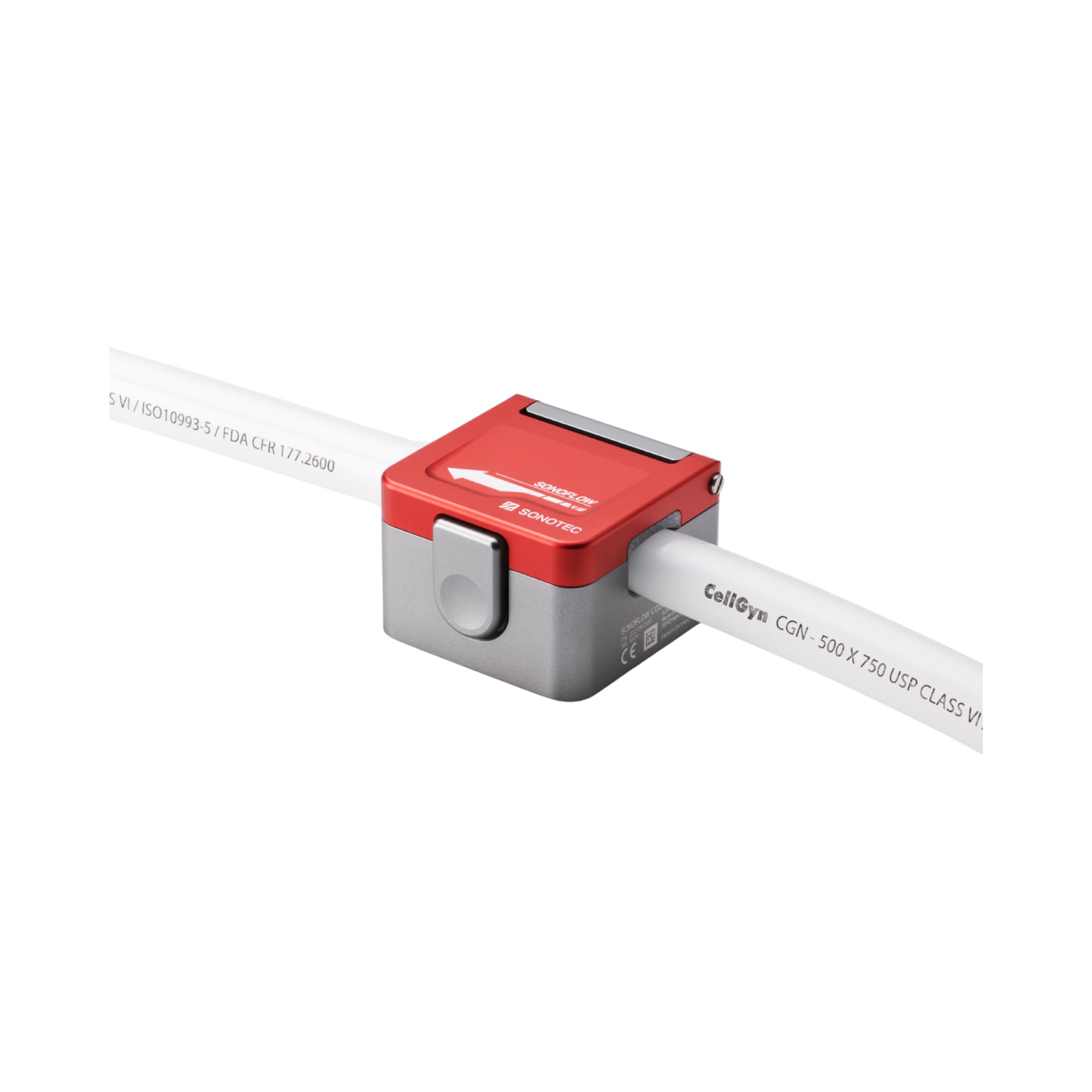

SONOTEC’s SONOFLOW CO.55 detects the flow rate of liquids in plastic tubes quickly and reliably using ultrasonic measurement. The non-invasive ultrasonic sensor has no contact with the medium and is particularly suited for applications with strict hygienic standards. The clamp-on mounting concept eliminates any risk of contamination or leaking.

Downloads

Technical Notes

Request Info

Technical Features

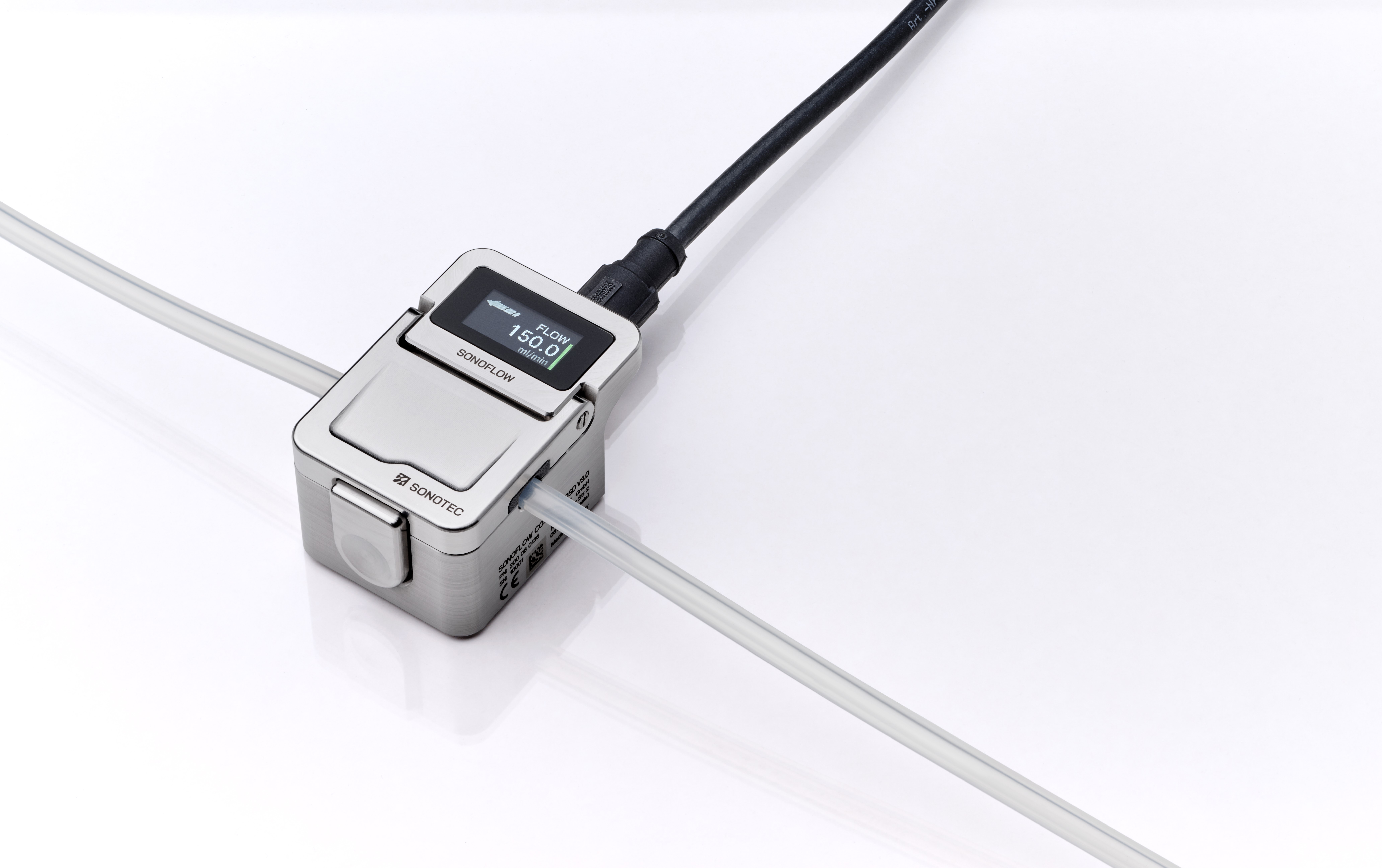

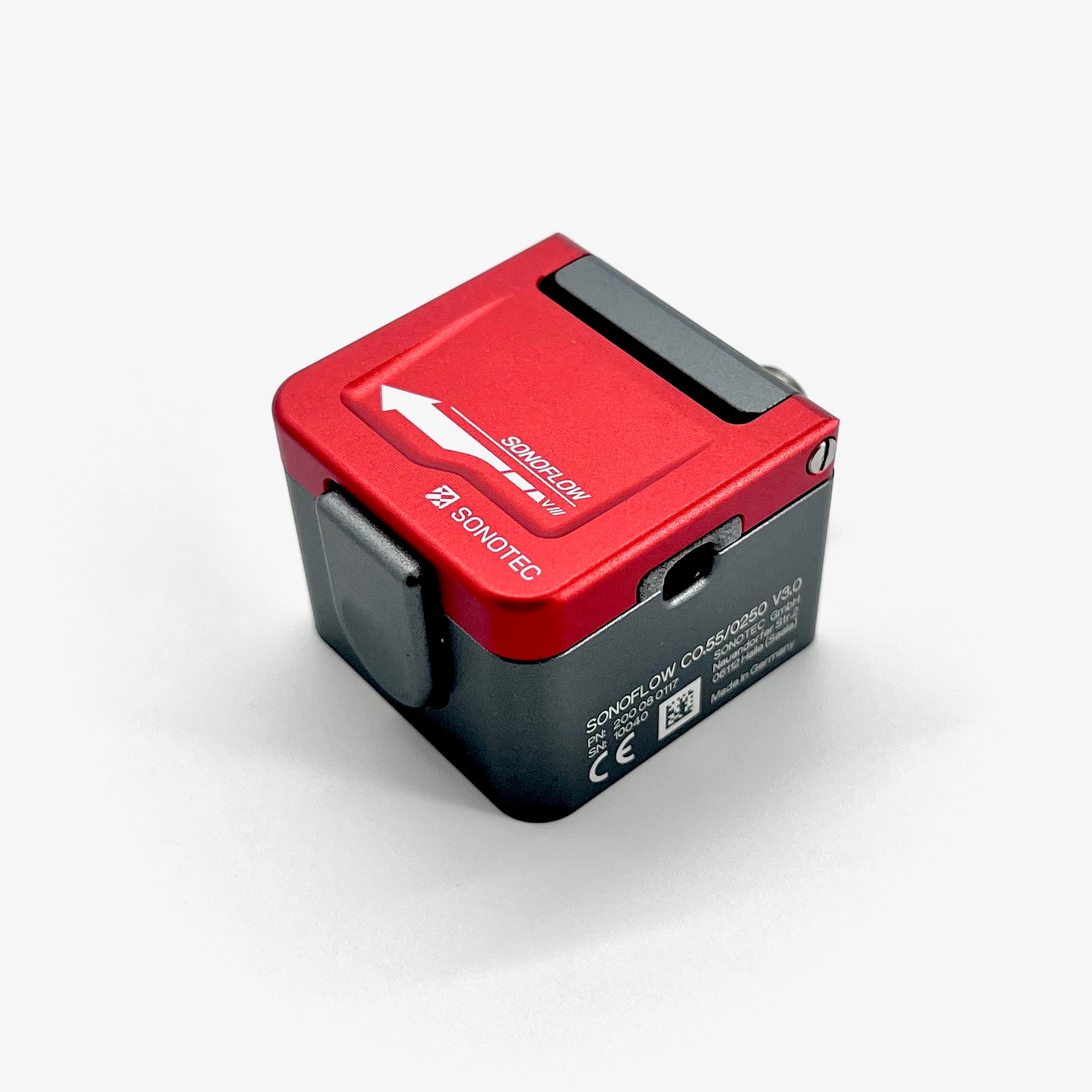

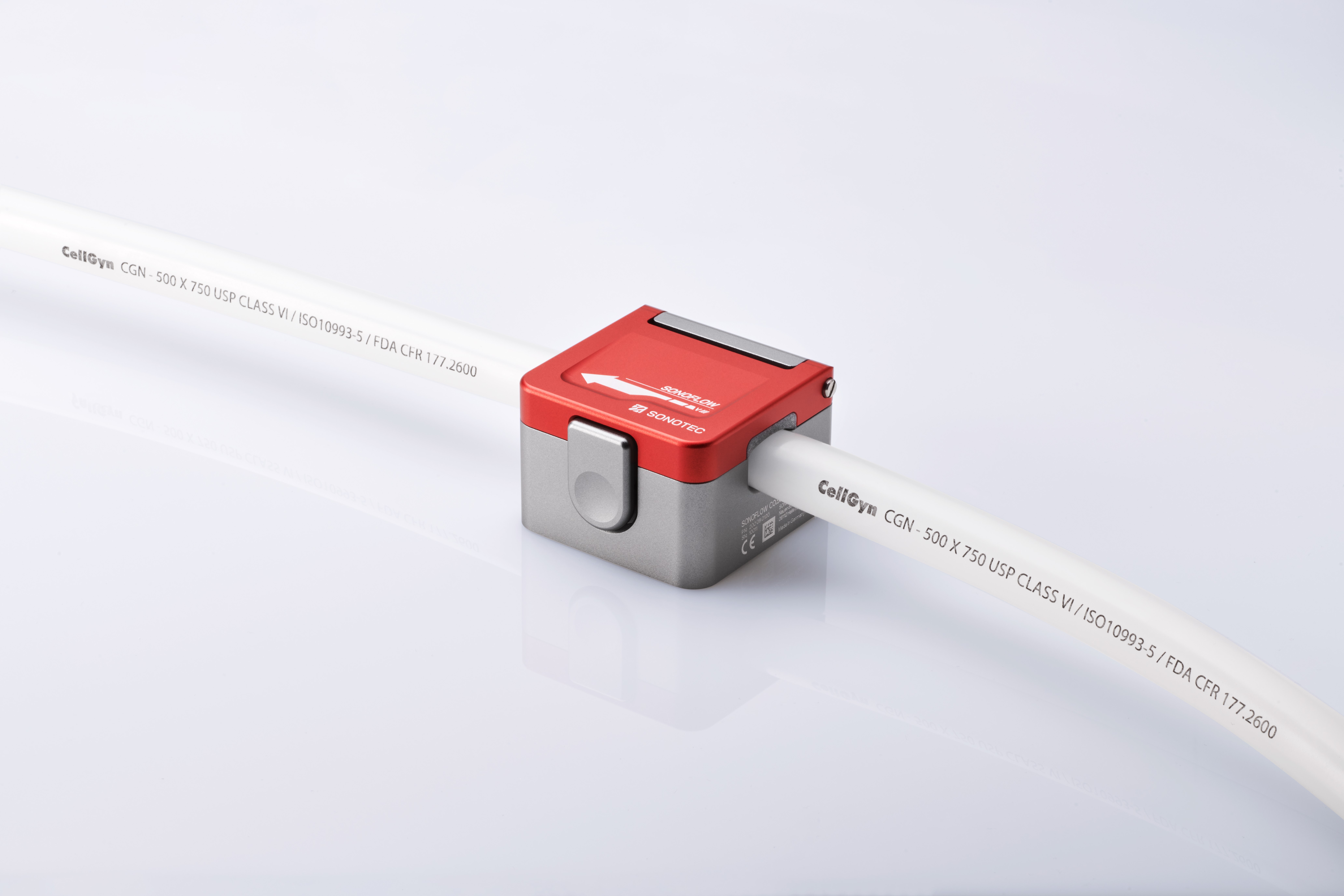

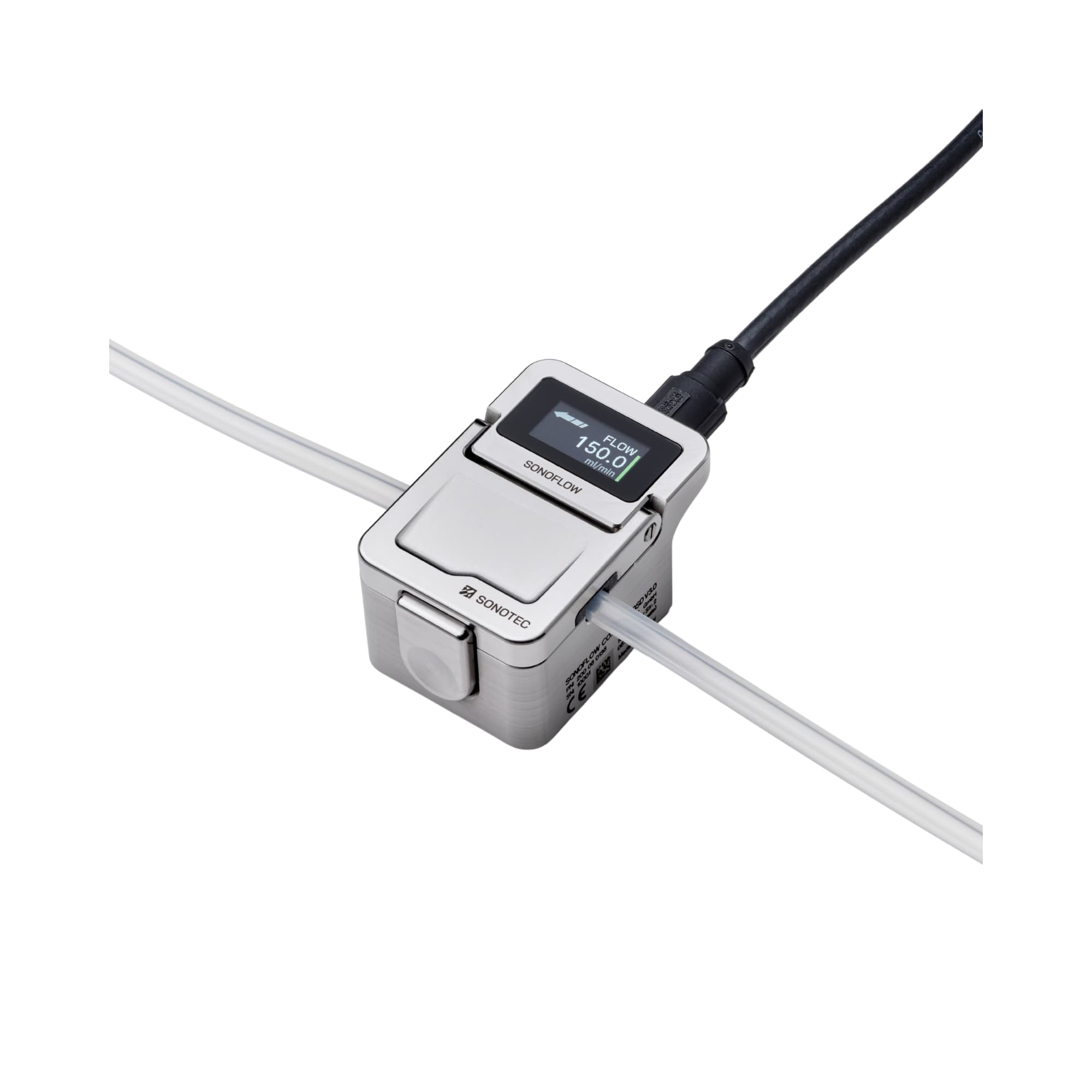

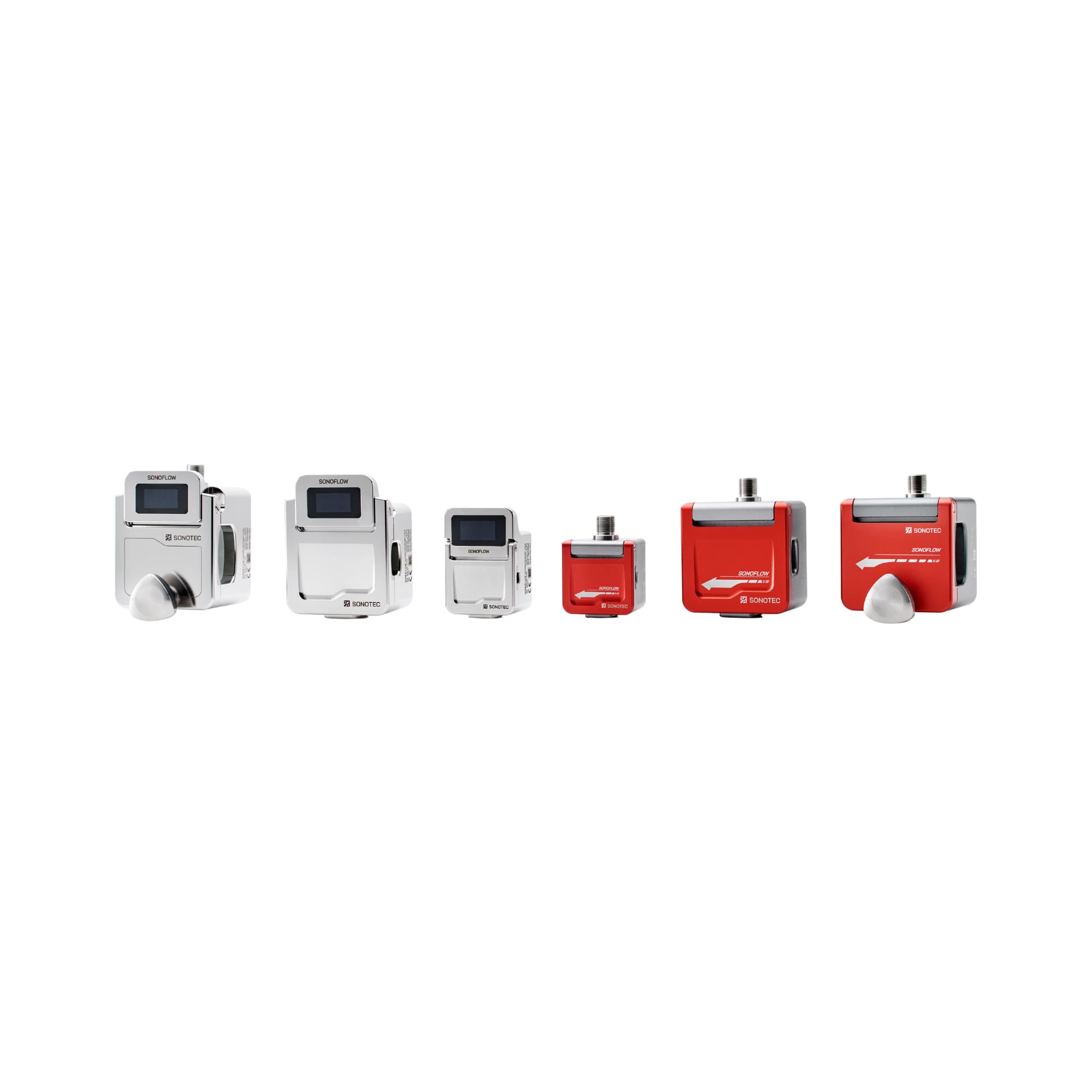

SONOTEC offers two versions of this Flow Sensor. The SONOFLOW CO.55 V3 sensor has an anodized aluminum casing that can be cleaned with IPA or mild cleaners. The SONOFLOW CO.55 V3 sensor has a GMP-friendly stainless steel casing that can withstand the harshest cleaners including Spor-Klenz. This Flow Sensor also has an integrated display to show flow and volume readings.

No product contact eliminates risk of contamination
Reads flow rates from 5 mL/min to 180 L/min
Flow measurement accuracy as low as 1% of flow rate
Tubing size ranges from 1/4” to 1 3/8”

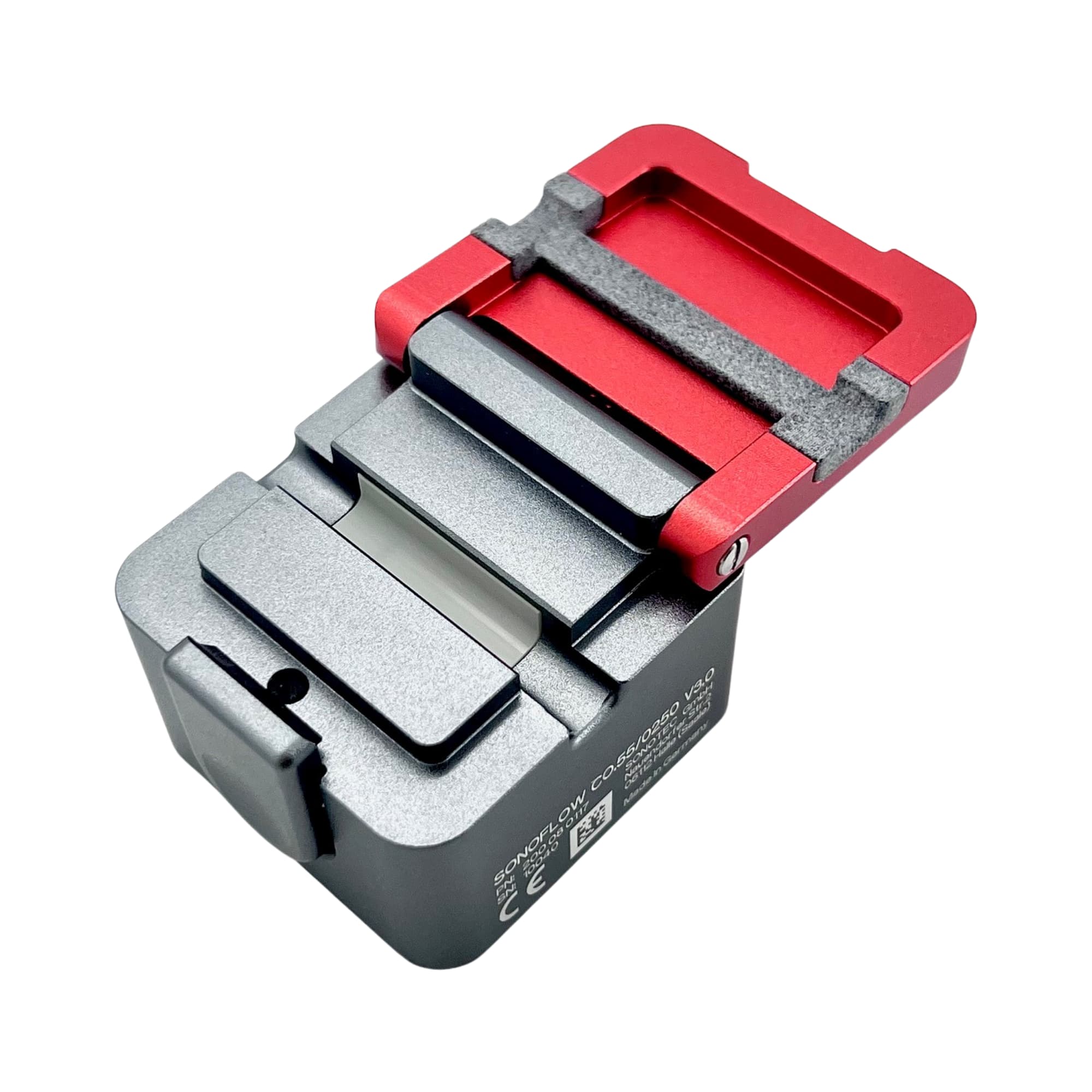

Sizes 1” and up have a wingnut closure
Compact design with integrated electronics and no external transmitter required
With an intuitive color touch display that allows incremental flow adjustments, monitoring and resetting of flow and volume data in real-time, and provides status information and bubble alerts
Easy to use software for monitoring, calibration, and parameter set-up

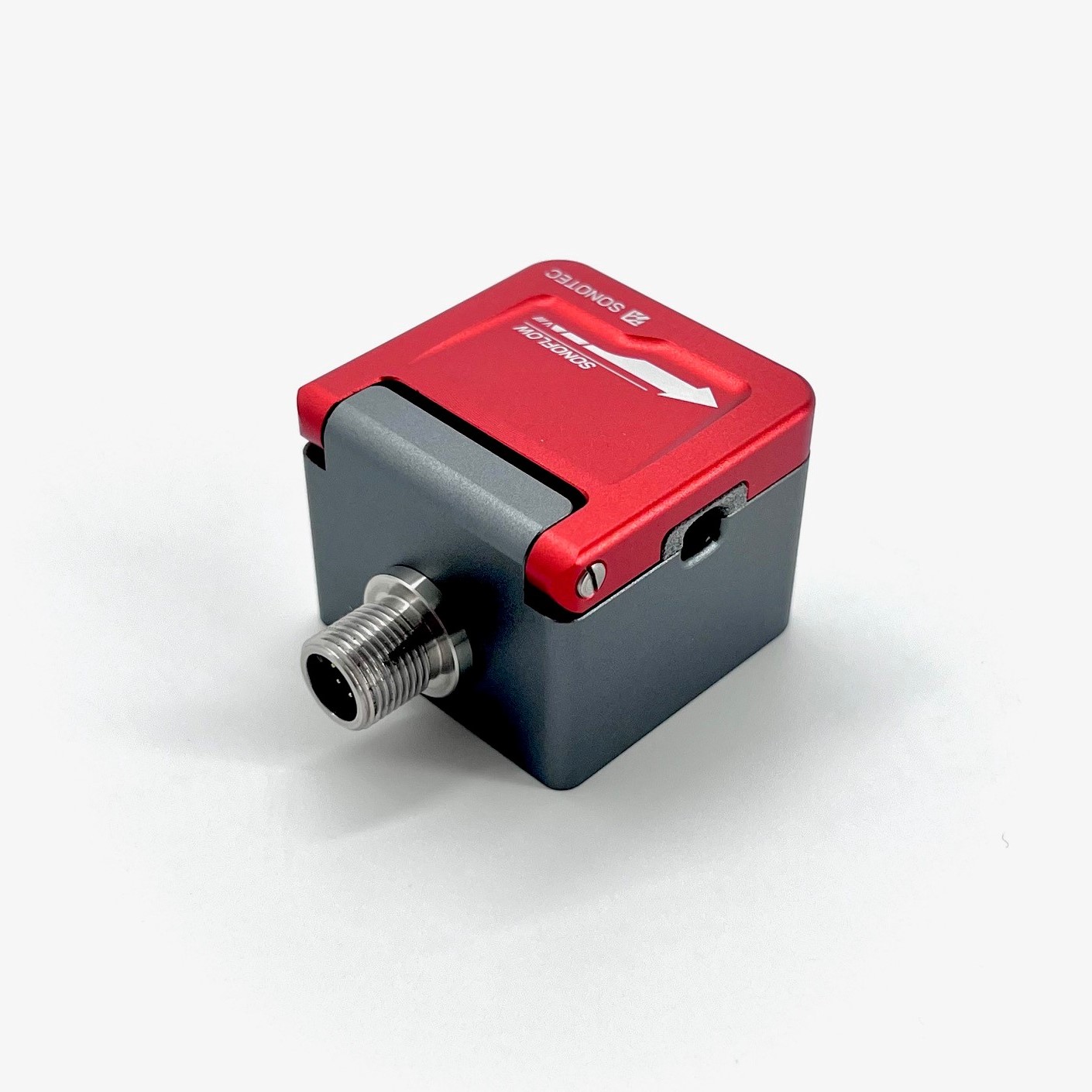

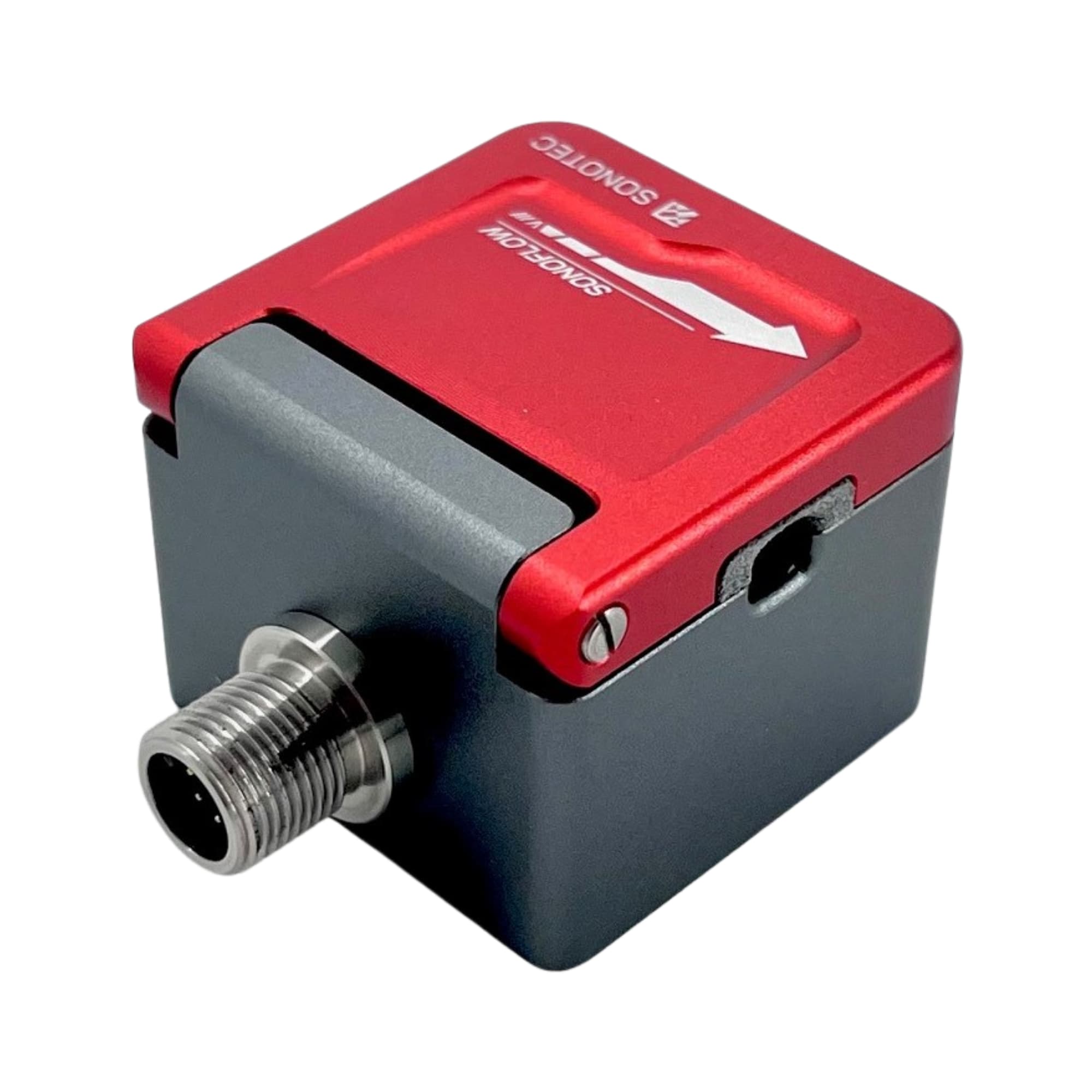

Electrical connection is 8 pin M12 connector
Configurable outputs include: RS485, 4-20mA, 0-20kHz, PNP-NPN-Push Pull, MODBus
Direct communication to most manufacturers’ pumps
Custom calibration to tubing temperature and specified flow rate available on request

SONOFLOW CO.55 vs SONOFLOW IL.52

Sensors		SONOFLOW CO.55	SONOFLOW IL.52	SONOCHECK ABD06
Application Parameters	Minimum Flow	10 ml / min	0.5 ml / min
	Maximum Flow	180 L / min	3 L / min
	Operating Temp. Min. / Max.	0°C to 60°C	0°C to 70°C	5°C to 60°C
	Accuracy	1.5% *	1%
	Tubing OD Min. / Max.	0/25″ / 1.38″	n/a	0/25″ / 1.38″
Outputs/Inputs	4 … 20 mA	✓	✓	✓
	Serial Interface	RS-485 Modbus	RS-485 Modbus	RS-485 or UART
	Frequency, 0 … 20 kHz, max. 5V	✓	✓
	Switching Output	✓	✓	✓
	Digital Input	✓	✓
Operation Modes	Real-Time Flow	✓	✓
	Volume Dosing / Totalizer	✓	✓
	Flow Switch	✓	✓
	Bubble Size			≥ 1µl
	Full / Empty Detection			✓
Electrical Specifications	Voltage Requirements	12VDC to 30VDC	12VDC to 30VDC	12VDC to 30VDC
	Current Consumption Max.	30mA to 60mA	50 mA	50 mA
	Integrated Processing Electronics	✓	✓	✓
